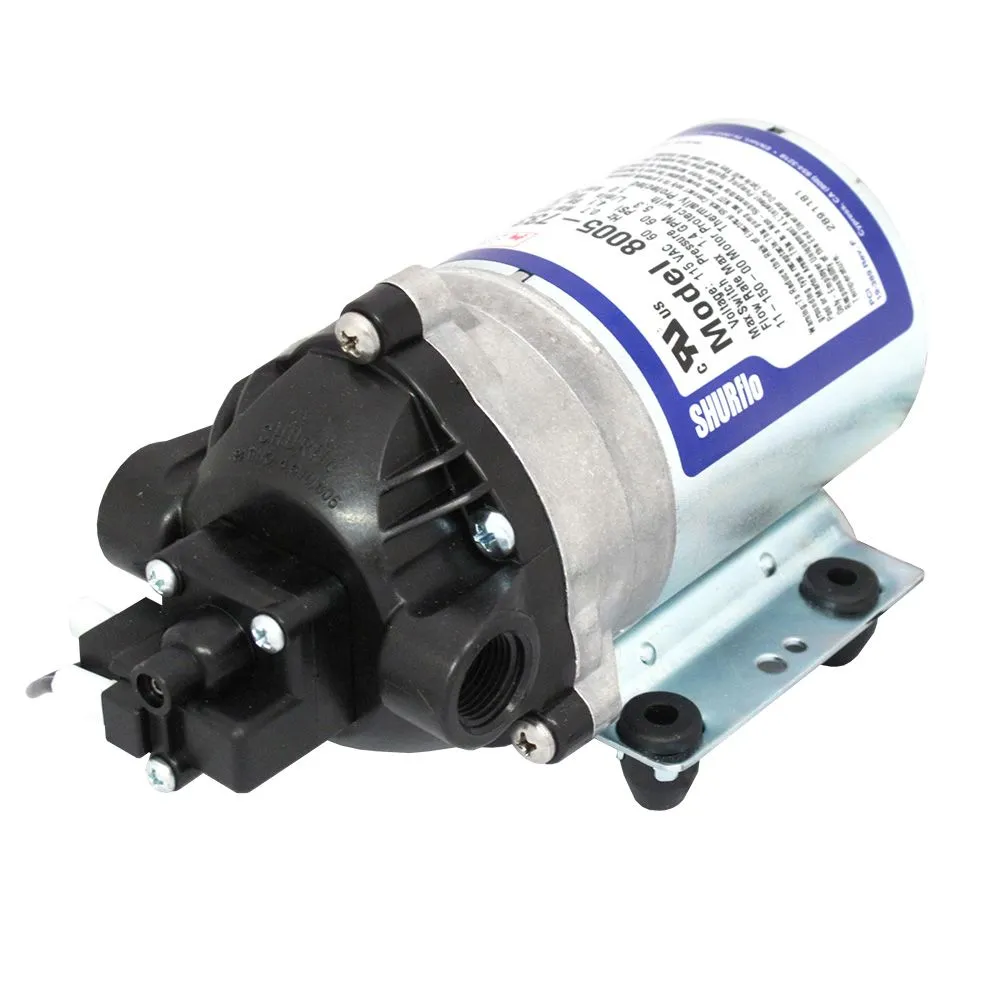

This demand pump replaces part number 32505 for the Pure Water Mega Classic and A-12 distillers.
Applications:
| Product Details | |
|---|---|
|
Amps |
0.31-0.54 Amps @ 0-60 PSI |
|
Diaphragm Materials |
Santoprene |
|
Housing Material |
Zinc Plated Steel |
|
Inlet Connection |
3/8″ FPT |
|
Inlet Pressure |
30 PSI |
|
Liquid Temperature |
170 °F |
|
Outlet Connection |
3/8″ FPT |
|
Power Source |
No Cord |
|
Pump Max Flow Rate (Gpm) |
1.5 |
|
Series |
8000 |
|
Size |
3/8″ |
|
Suction Lift |
Self prime up to 11 ft |
|
Voltage Type |
AC |
|
Wire Option |
Bare Wire |
|
Connection Type |
Female (FPT) |
|
Type |
Diaphragm Pump |
|
Voltage |
115VAC |
| Shipping Dimensions | |
|
Shipping Length |
14 in. |
|
Shipping Width |
6 in. |
|
Shipping Height |
6 in. |
| Product Weight & Dimensions | |
|
Product Height |
4.5 |
|
Product Length |
7.75 |
|
Product Width |
4 |
|
Product Weight (lbs) |
5 |
| Product Details | |
|---|---|
|
Amps |
0.31-0.54 Amps @ 0-60 PSI |
|
Diaphragm Materials |
Santoprene |
|
Housing Material |
Zinc Plated Steel |
|
Inlet Connection |
3/8″ FPT |
|
Inlet Pressure |
30 PSI |
|
Liquid Temperature |
170 °F |
|
Outlet Connection |
3/8″ FPT |
|
Power Source |
No Cord |
|
Pump Max Flow Rate (Gpm) |
1.5 |
|
Series |
8000 |
|
Size |
3/8″ |
|
Suction Lift |
Self prime up to 11 ft |
|
Voltage Type |
AC |
|
Wire Option |
Bare Wire |
|
Connection Type |
Female (FPT) |
|
Type |
Diaphragm Pump |
|
Voltage |
115VAC |
| Shipping Dimensions | |
|
Shipping Length |
23.75 in. |
|
Shipping Width |
18 in. |
|
Shipping Height |
6.25 in. |
| Product Weight & Dimensions | |
|
Product Height |
6.25 |
|
Product Length |
23.75 |
|
Product Width |
18 |
|
Product Weight (lbs) |
25.22 |
