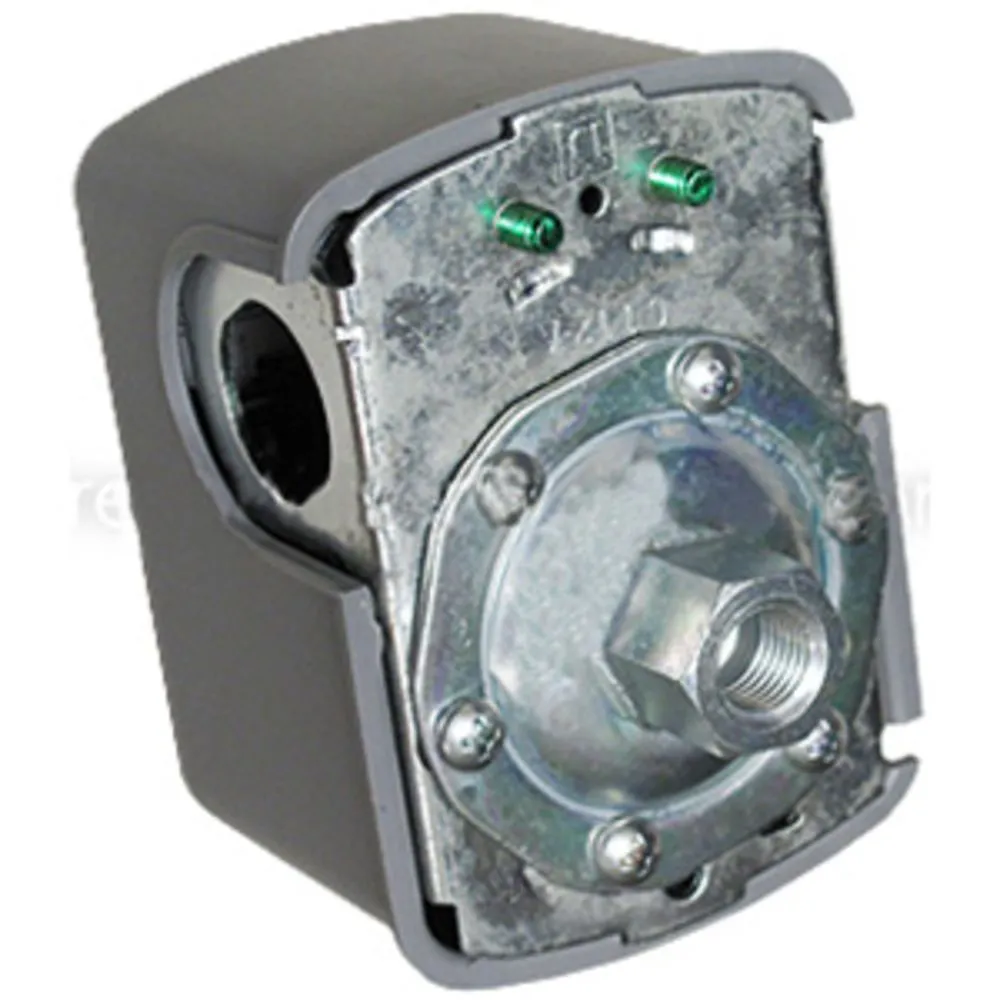

Square D Pumptrol 9013FSG42J16 Water Pump Pressure Switch 8-20 PSI

The Square D Pumptrol 9013FSG42J16 is an electromechanical water pump pressure switch. The sensing element confirms that the pressure has reached the predetermined set point and activates the switch. The 9013FSG42J16 unit is designed to control electrically driven water pumps such as circulators, submersibles, and boosters.

Specifications:

• Factory Set Cut-In Pressure: 8 psi
• Factory Set Cut-Out Pressure: 20 psi
• Pressure Connection: v1/4″ FNPT
• Controlled Fluid: -22° to 257° F
• Maximum Voltage Rating: 575VAC
• Short Circuit Protection: 20A by cartridge fuse, type gG
• Maximum Allowable Pressure: 220 psig
• Actuator Type: Diaphragm
• Diaphragm: Nitrile (Buna N)
• UL Listed and CSA Certified
