The

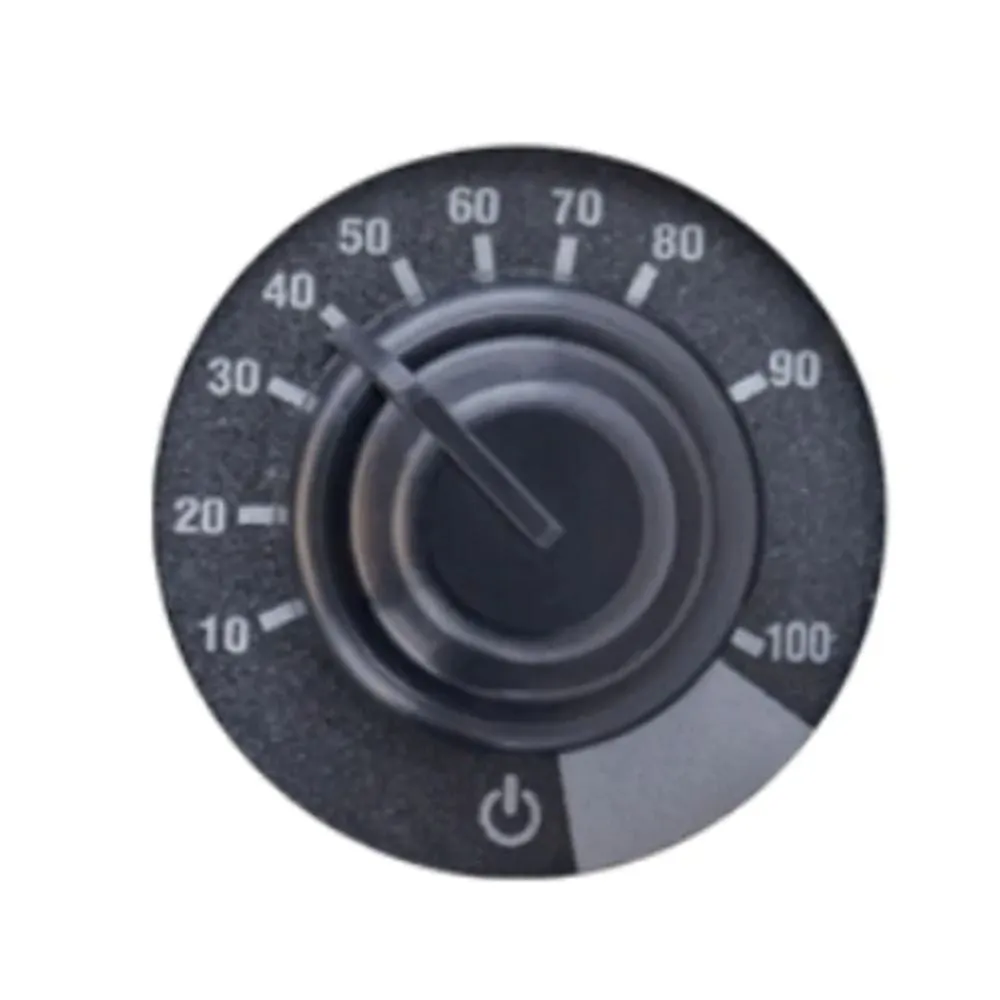

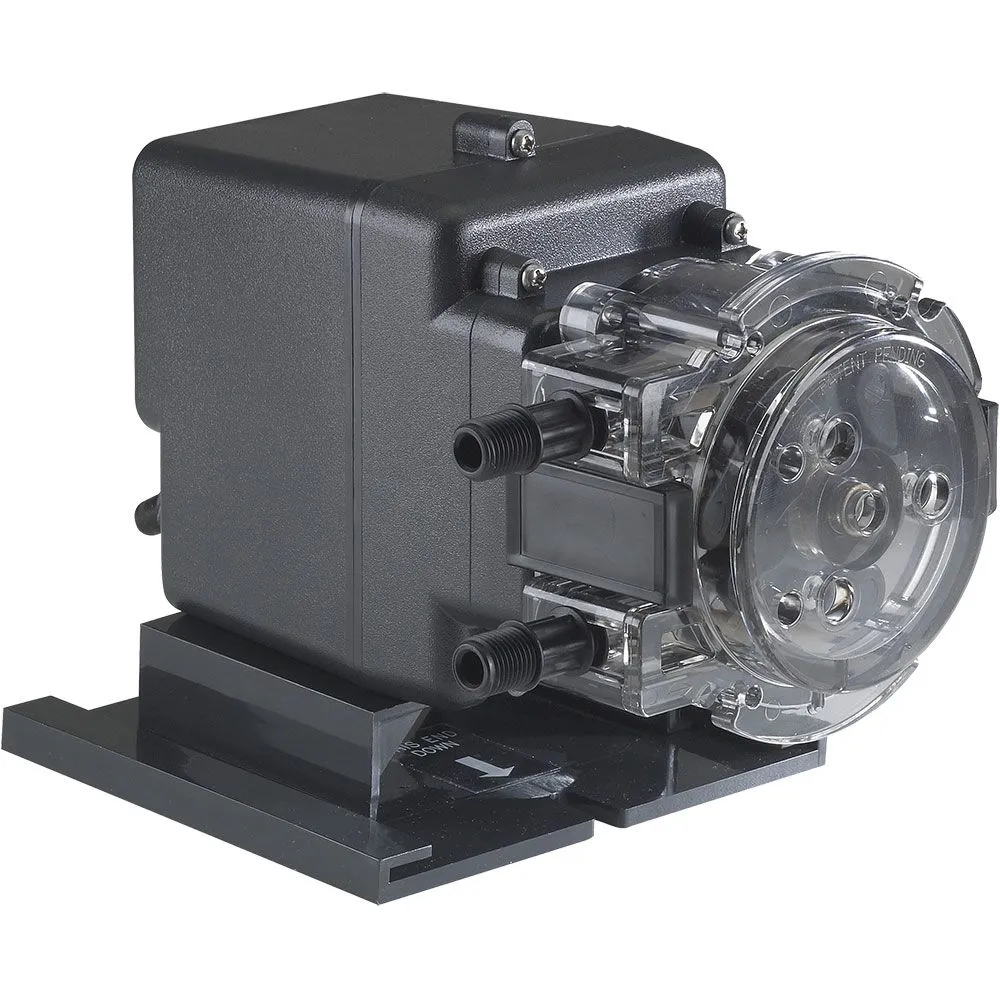

Stenner Econ LD Series Low Volume Pump 2.4 oz/hr #M Tube 120V is a compact, peristaltic pump designed for reliably metering low volume amounts. The quiet, long lasting brushless motor, in a totally enclosed housing, offers premium quality at an economical price. The LD series is adjustable with a potentiometer to control outputs with a 50:1 turndown.
Features:
- Manually adjustable flow rate output
- Quick Release Pump Head
- Enclosed housing
- Self-priming, does not lose prime or vapor lock
- Pumps off-gassing solutions and can run dry
- 3-point roller design assists with anti-siphon
- Tube replacement without tools
- Output reproducibility
- Tube lubrication not required
Specifications:
- Maximum Working Pressure: 80 psi (5.5 bar)
- Maximum Operating Temperature: 104°F (40°C)
- Maximum Suction Lift: 25 ft (7.6 m) vertical lift, based on water
- Maximum Viscosity: 50 Centipoise
- Uses: Indoor/Outdoor
- Output Range: 0.04 to 2.4 ounces per hour, with pressures to 80 psi
