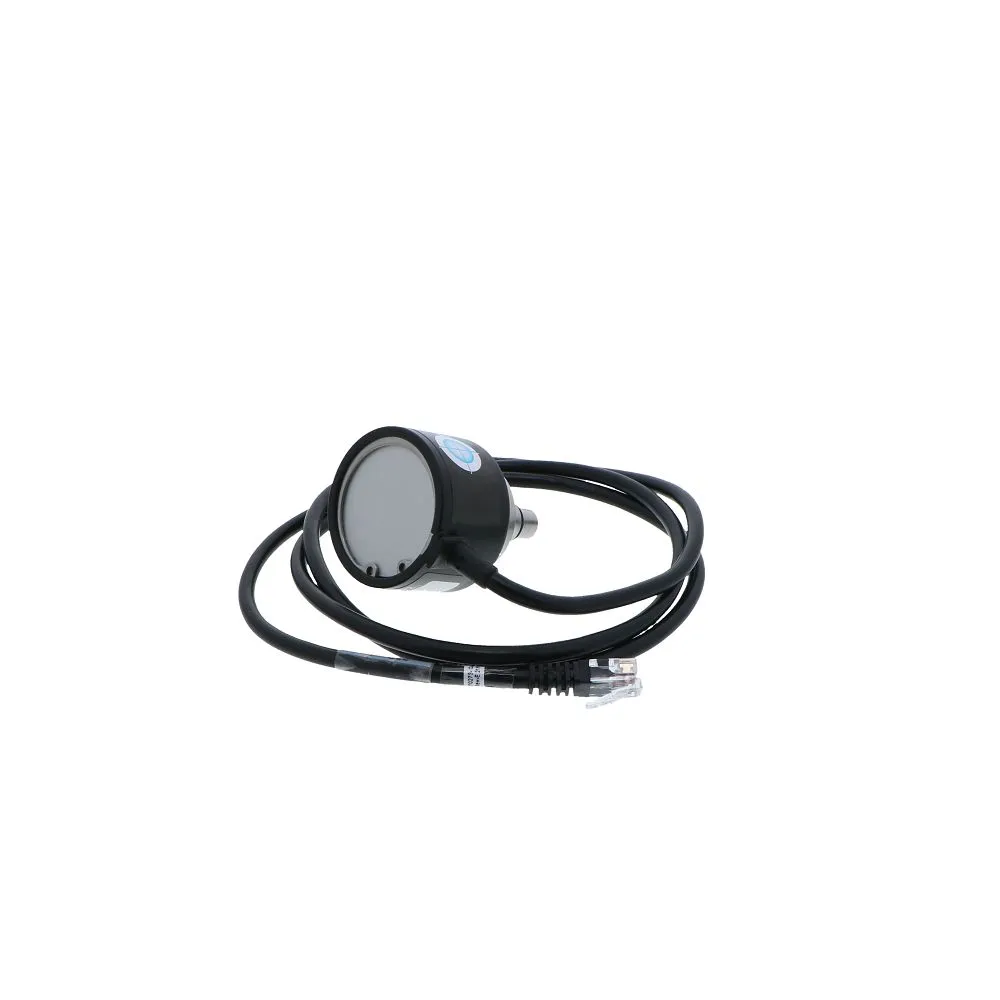

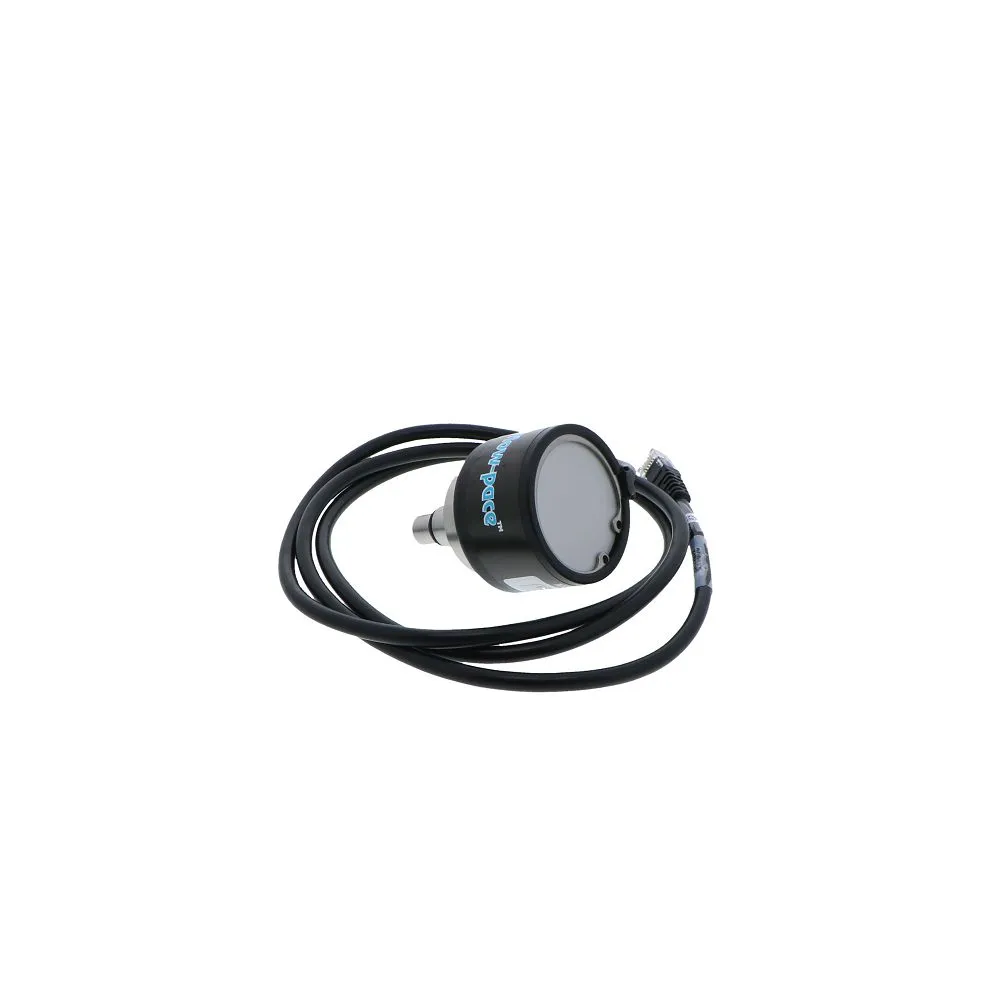

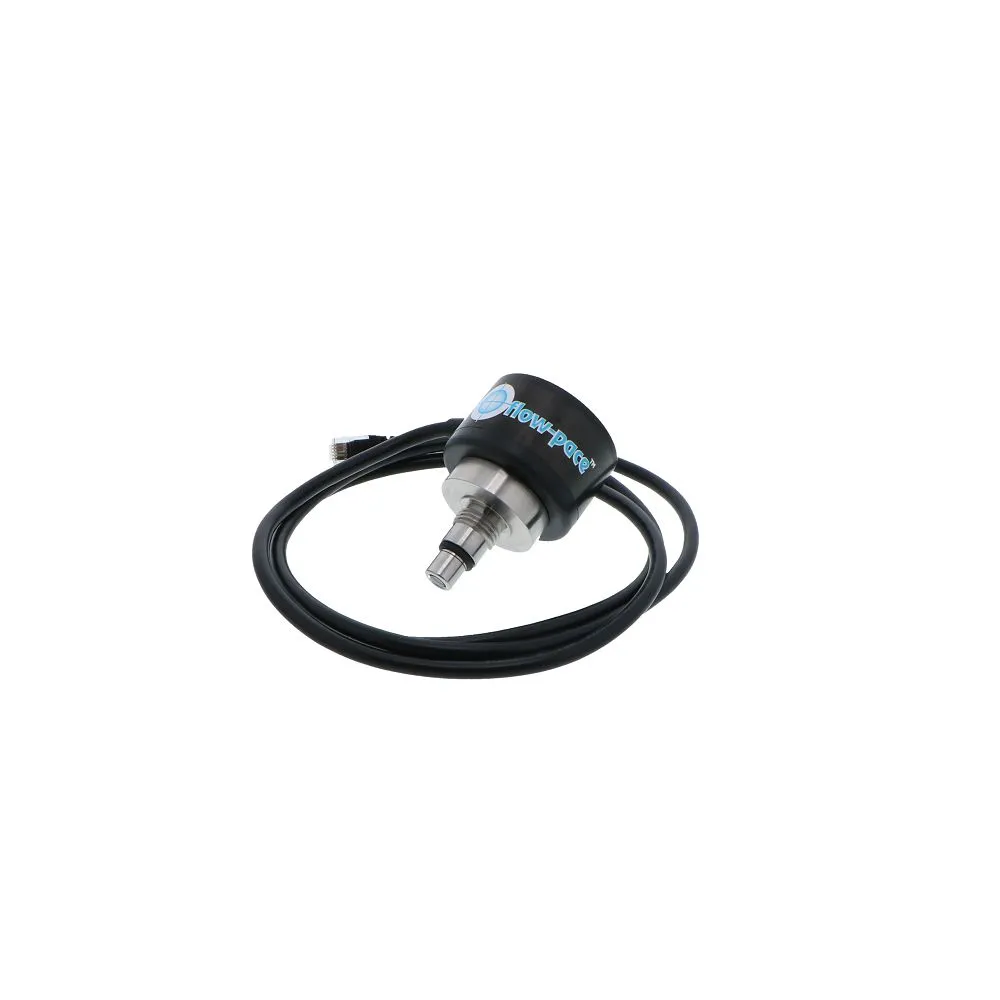

The Sterilight 254NM-FP2 is a 254 nm UV sensor for use in Platinum NSF 55 validated systems. This sensor can be described as a flow pace sensor, which will throttle back the low pressure high output lamp of the system in no-flow conditions, thereby reducing heat build up in the reactor and saving on energy.
The calibration of the 254NM-FP2 is set so the UV system will go into an alarm condition when the UV intensity drops below a 40 mJ/cm2 dose. 254NM-FP2 is used only on the SPV Platinum NSF 55 validated systems due to their calibration.
NOTE: Compatible with SPV-1.5, SPV-3.5, SPV-15, SPV-20, SPV-200, SPV-410, SPV-600, SPV-740, and SPV-950.
Manufacturer’s Warranty: 1 year
Specifications
| Product Details |
|
Type
|
UV Sensors
|
| Warranty & Certifications |
|
Warranty
|
1 Year
|
| Shipping Dimensions |
|
Shipping Length
|
5 in.
|
|
Shipping Width
|
5 in.
|
|
Shipping Height
|
2.25 in.
|
| Product Weight & Dimensions |
|
Product Weight (lbs)
|
0.6
|
