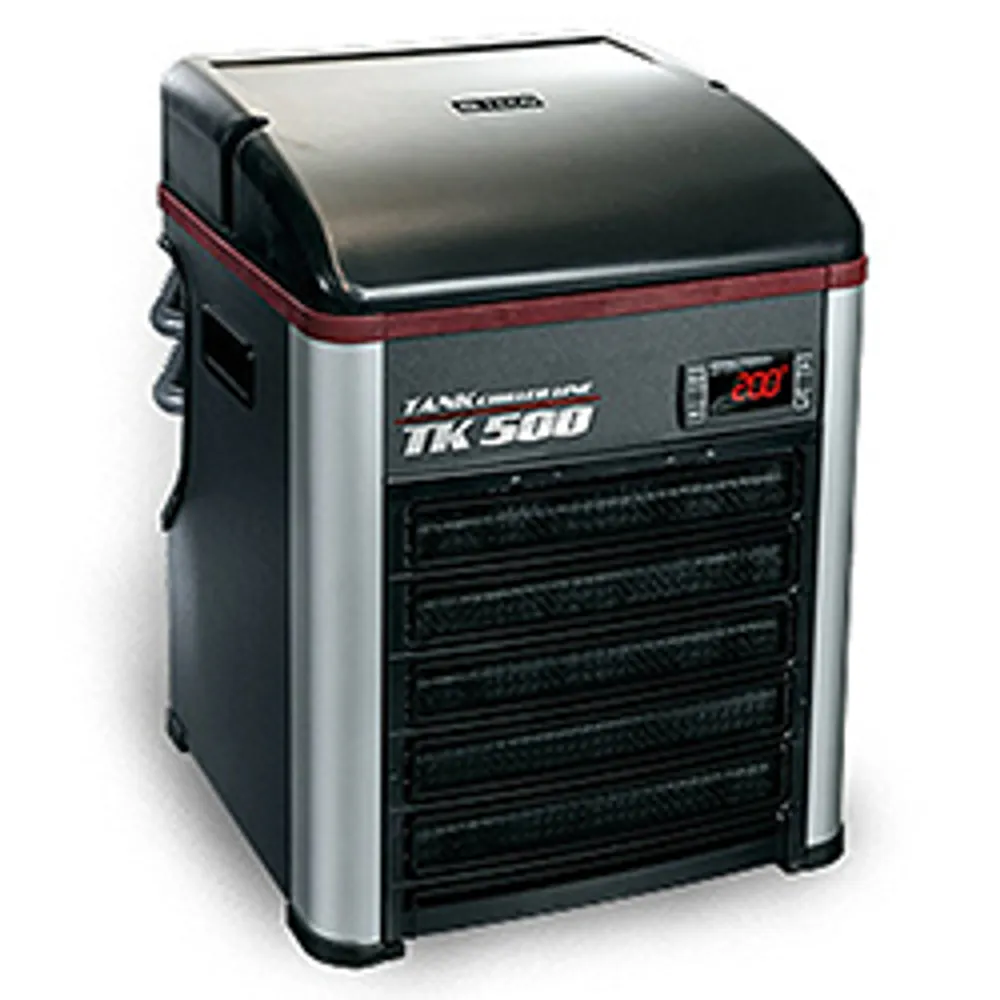

Teco TANK TK-500 Aquarium Chiller
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed-loop temperature control system with an extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor help facilitate placement of chiller in confined spaces.
Teco TANK TK-500 Aquarium Chiller
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed-loop temperature control system with an extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor help facilitate placement of chiller in confined spaces.
Cooling Performance
The ability of the TANK TK-500 to pull down water temperatures in an 86°F room:
| AQUARIUM SIZE | TEMP. ATTAINABLE | HEATING LOAD | NET PULL-DOWN | C.O.P.* |
|---|---|---|---|---|
| 130 gallons | 77°F from 86°F | 1.89 watts/gal. | 9°F cooler | 2.0 |
| * Coefficient of Performance (COP) – a numerical value that represents cooling performance from a baseline room temperature of 86°F and a typical heat source (aka. Heating Load | ||||
Technical Specifications
| Recommended Aquarium Size | up to 120 gallons | |
| Horsepower | 1/6 HP | |
| Maximum Pressure | 8.7 psi | |
| Minimum Flow Rate | 106 gallons per hour | |
| Maximum Flow Rate | 211 gallons per hour | |
| In/Out Water Connection | 5/8″ tube diameter | |
| Exchanger | titanium | |
| Supply | 120V-60Hz | |
| Power Consumption | 225 Watts | |
| Gas/Refrigerant | R134a | |
| Minimum Set Point | 41°F | |
| Maximum Set Point | 95°F | |
| Weight | 36.4 lbs. (16.5 kg) | |
| Dimensions | 12.2″ x 12.2″ x 16.38″ |
