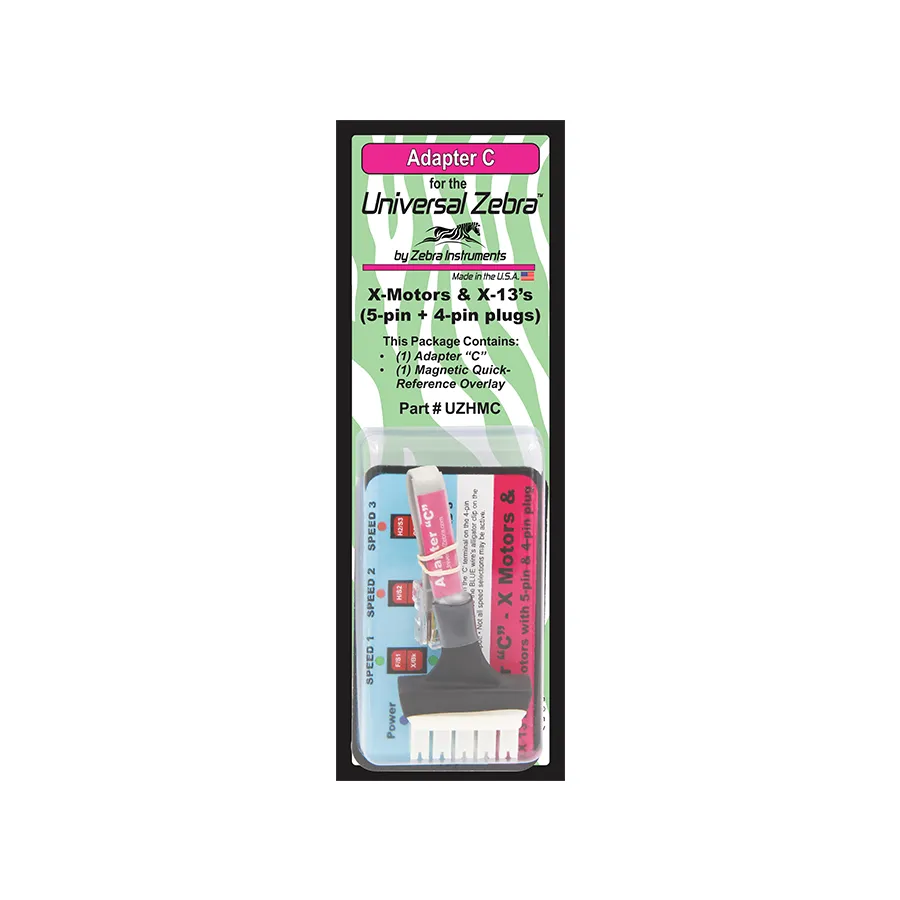

Universal Zebra Adapter “C”

UZHMC – Universal Zebra Adapter C

Adapter C is used with the UZ-1 Universal Zebra tool to troubleshoot these ECM.

The adapter simply plugs in to the end of the Universal Zebra’s harness, and then to the motor. A magnetic overlay card is included that explains what functions the UZ-1’s switches and LEDs perform for this specific series of ECM motor.

Adapter C is used with the UZ-1 Universal Zebra Tool to troubleshoot these ECM motors:

• GE, Regal-Beloit, and GENTEQ X-13 Series Motors
• GE, Regal-Beloit, and GENTEQ Evergreen ‘AH’ (but NOT ‘IM’) Series ECM motors
• Other Manufacture “X-Motors”
• The Universal Zebra System features free online training for each component.
