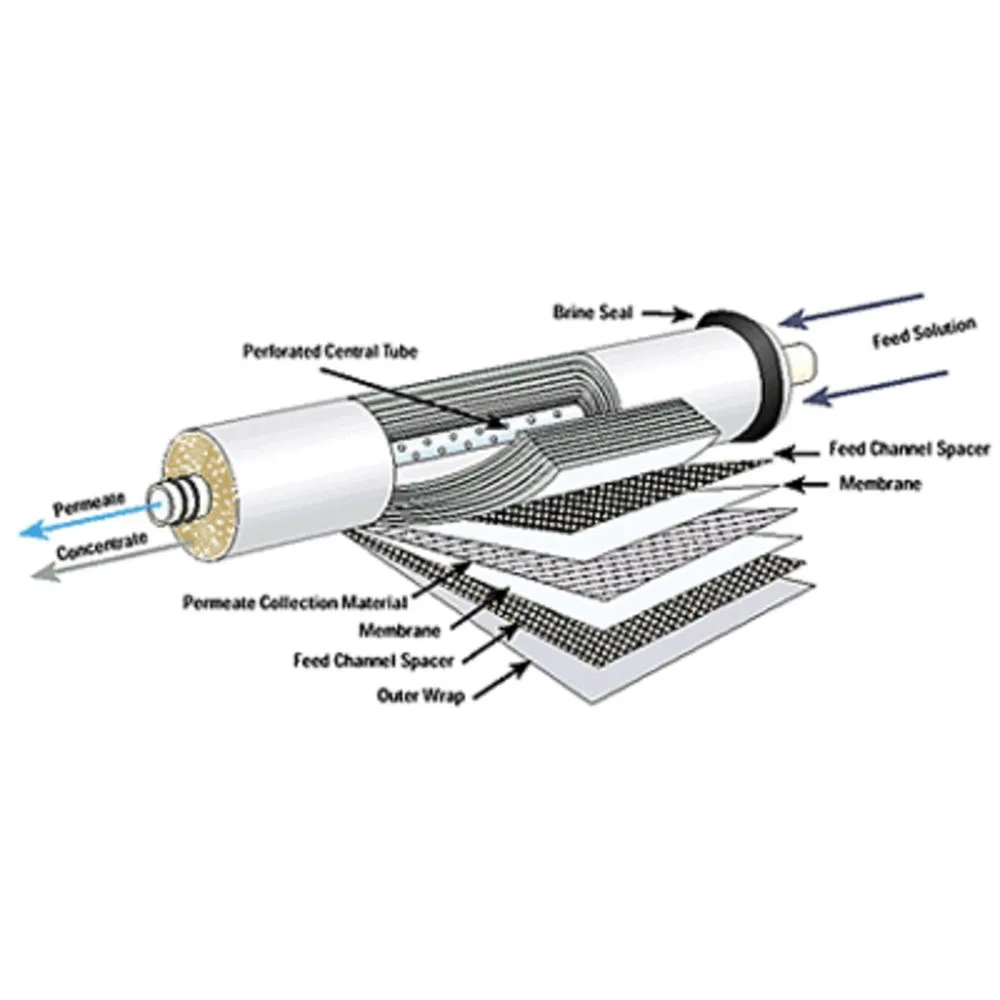

Element Membrane Diagram (not the encapsulated model):
| Product Details | |
|---|---|
|
Active Area |
440 sq. ft. |
|
Average Nacl Rejection |
0.998 |
|
Chlorine Tolerance |
1,000 ppm-hrs |
|
Cleaning Ph Range |
2-11.5 |
|
Direction |
Outside – In |
|
Feed Water Temperature |
77°F |
|
Inlet Pressure |
200 PSI |
|
Inner/Outer Wraps |
Fiberglass |
|
Max Feed Silt Density Index |
<5 Silt Density Index |
|
Max Feed Water Turbidity |
<1 Nephelometric Turbidity Units |
|
Max Pressure Drop |
12 PSI Differential |
|
Max Pressure (Psi) |
600psi |
|
Max Temp (°F) |
122 °F |
|
Membrane Type |
Spiral Wound |
|
Minimum Salt Rejection Cl- (%) |
0.993 |
|
Permeate Flow Rate |
11500 gpd (43.5) |
|
Permeate Tube Diameter |
1.125″ |
|
Ph Range |
4-11 |
|
Recovery Rate |
0.15 |
|
Cartridge Style |
Drop-in |
|
Change Frequency |
24 Months |
|
Diameter |
7.9″ |
| Shipping Dimensions | |
|
Shipping Length |
40 in. |
|
Shipping Width |
6 in. |
|
Shipping Height |
6 in. |
| Product Weight & Dimensions | |
|
Product Length |
40 in. |
|
Product Weight (lbs) |
9 |
