Veolia Osmonics Desal CTA-16 RO Membrane Element

Veolia Osmonics Desal Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.
Residential Applications:

• Purify varying qualities of saline water

Commercial Applications:

• Drinking water for restaurants
• Drinking water vending machines
• Aquarium water treatment
• Softened water for homes, hotels, commercial laundries and car washes
• Post-treatment of deionized water
• Pure water for pharmaceuticals, laboratories and electronics
• Hemodialysis
• Oil/water separation

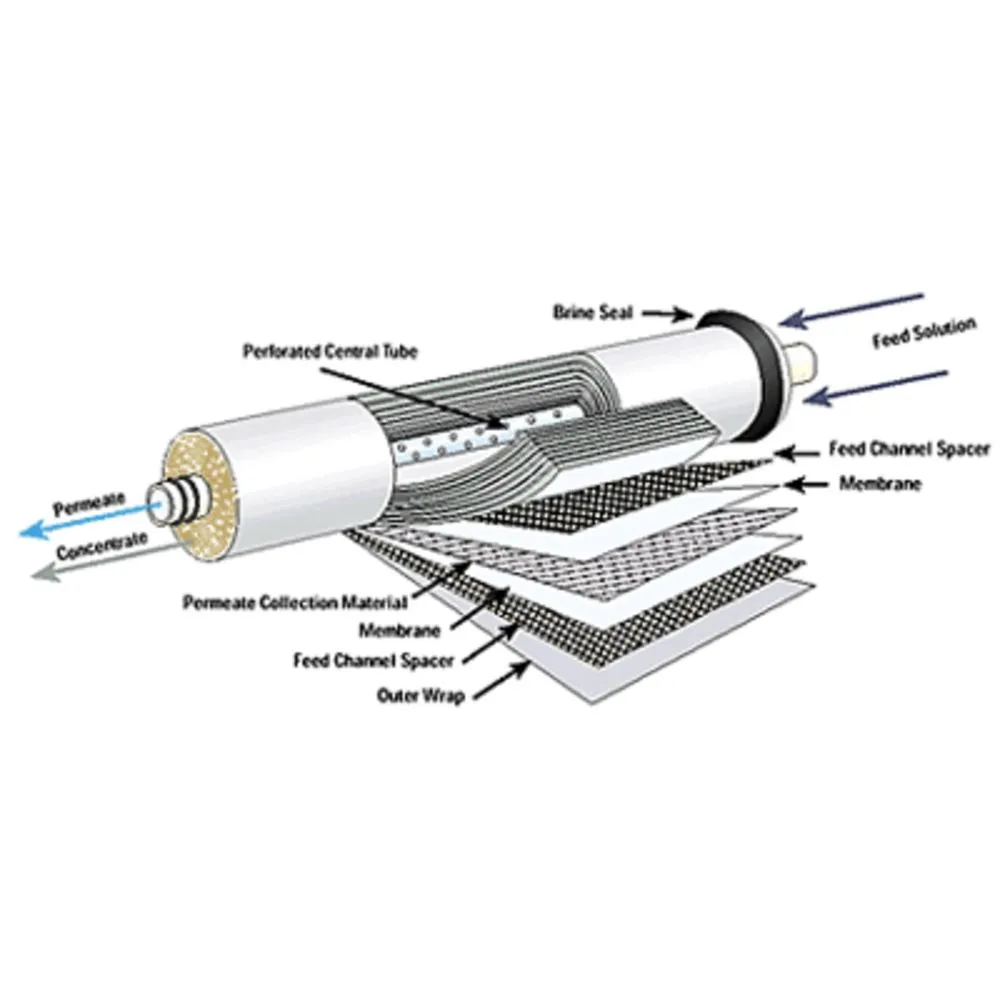

Element Membrane Diagram (not the encapsulated model):
Compatible with:

Ametek	ROM-16C, 155415-01
Bruner	A20283, A-2028-3
Hague®	200300
Lancaster	S1224, LA-1201332
Marlo	T-1060, A2069011
Microline	S1224, LA-1201332
