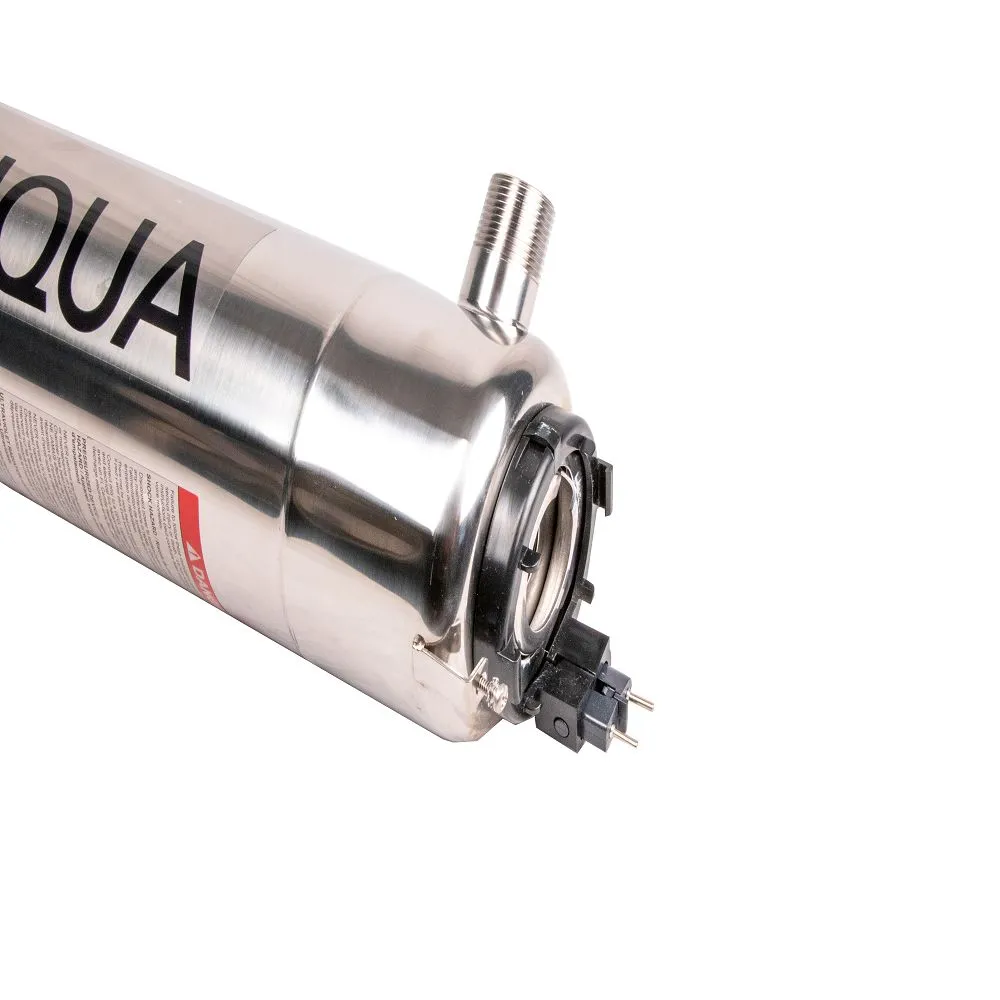

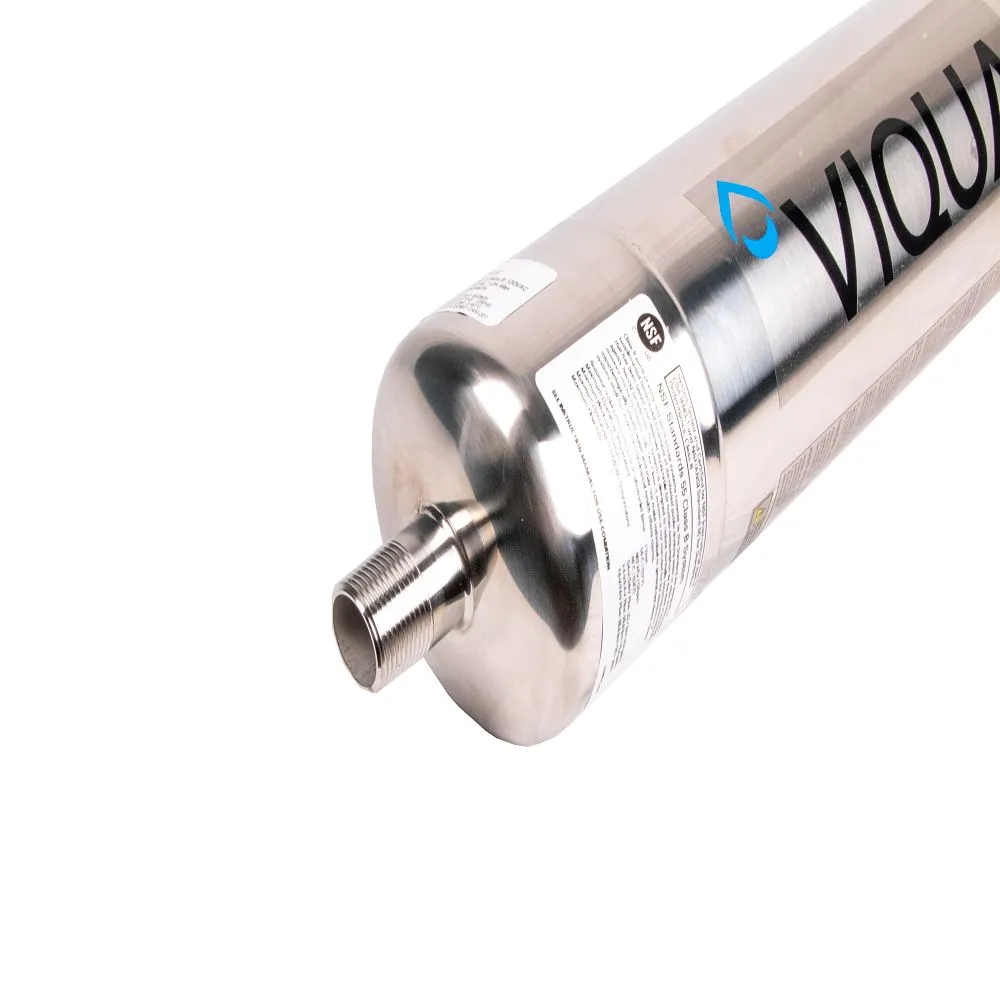

Viqua D4-V NSF Class B Ultraviolet Water System Powered by UVMax 8.9 gpm

Viqua D4-V Ultraviolet Water System is a whole house disinfection system that offers a 8.9 gpm flow rate and removes harmful bacteria, virus, and microorganisms. The Viqua D4-V’s compact design, simple installation, and low cost of operation is ideal for small to medium size home. Drink confidently with Viqua’s quality and reliability from its high-output ultraviolet water purification system.

Specifications:

• Viqua controller with water-resistant case
• LED display showing lamp replacement reminder
• Indicator lights show the status of each system component
• Lamp timer reset button and mute button to silence audio alarm
• Stainless steel chamber with safety cap and special lamp plug
• Universal power input
• High-output UV lamp
• Three-year warranty
• Tested and certified by NSF International against NSF/ANSI Standard 55 for Disinfection Performance, Class B

NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm2) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm2) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
This system is compatible with the 602805 Trojan Lamp and the 602732 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for D4-V includes:

• Trojan Lamp (1): 602805
• Trojan Quartz Sleeve (1): 602732
• Trojan O-Rings (2): 2045

Replacement Parts:

• Trojan Lamp: 602805
• Trojan Quartz Sleeve: 602732
• Trojan O-Rings: 2045
• Trojan Ballast: 650713-007
