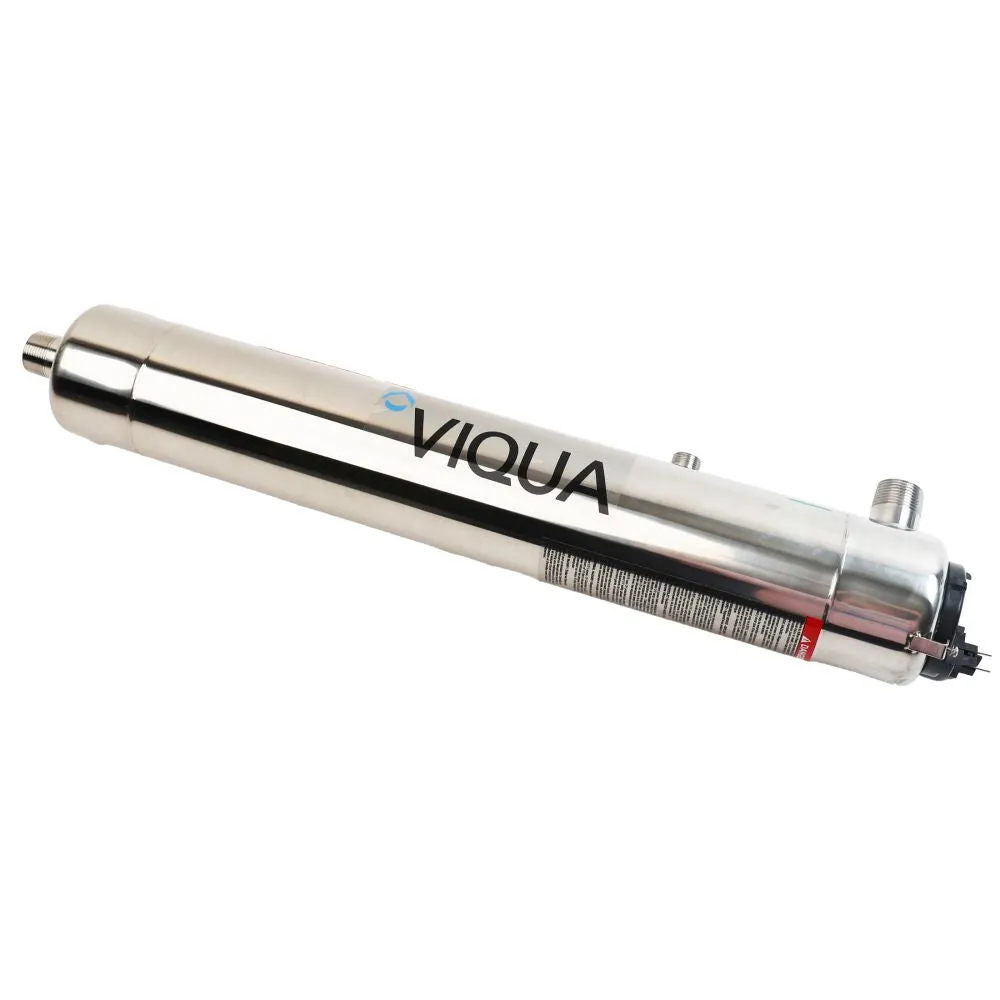

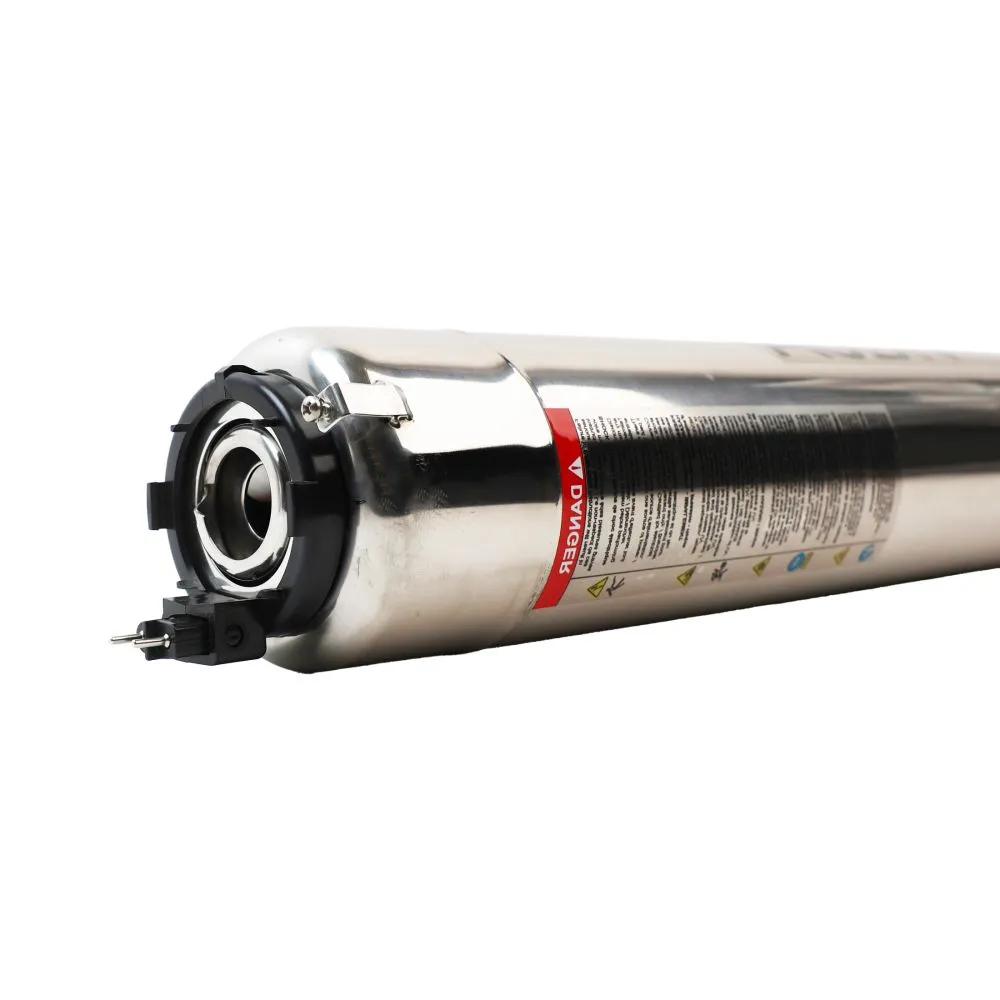

The Viqua F4-50 Plus Ultraviolet System is designed to reduce harmful bacteria, viruses, and microorganisms. The F4-50 Plus is redesigned, making it more compact and easier to install. The F4-50 Plus is designed for applications where water quality conditions result in less than ideal UV transmissions. The Viqua F4-50+ effectively disinfects water with UVT values as low as 50% at recommended flow rates up to 15 gpm.
Features:
NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground “Schuko” power cord.
| Product Details | |
|---|---|
|
Ambient Temperature Range |
32-104 °F |
|
Body Material |
304 Stainless Steel |
|
Frequency Rate |
50/60 Hz |
|
Inlet Connection |
1″ MPT |
|
Max Pressure (Psi) |
125 |
|
Min Pressure (Psi) |
4 |
|
Outlet Connection |
1″ MPT |
|
Power |
130 Watts |
|
Size |
1″ |
|
Connection Type |
Male (MPT) |
|
Contaminants Reduced |
Bacteria Heavy Metals Cysts |
|
Diameter |
4″ |
|
Flow Rate |
28gpm @ 50% UVT GPM (16mJ/cm2 Dose) 15gpm @ 50% UVT GPM (30mJ/cm2 Dose) 12gpm @ 50% UVT GPM (40mJ/cm2 Dose) |
|
Type |
Single UV System |
|
Voltage |
230V |
| Shipping Dimensions | |
|
Shipping Length |
30 in. |
|
Shipping Width |
10 in. |
|
Shipping Height |
10 in. |
| Product Weight & Dimensions | |
|
Product Length |
30 in. |
|
Product Weight (lbs) |
18 |
