Water Filter Cartridges

Vu-Flow Chemical Resistant Sand Separator Filter T Style 2″

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: NT-2-SO-30-HPP

CATEGORY: Water Filter Cartridges

Description

Vu-Flow 2″ Chemical Resistant Sand Separator Filter System makes solid particle removal simple and economical. The benefit of these systems are the ability to be cleaned and reused, and can handle large volumes of sediment. Designed to be used in situation where exposed to chemical or corrosives, the 2″ Chemical Resistant Sand Separator Filter by Vu-Flow has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.
Features:

Unique element design traps sediment in lower reservoir of clear cover.
Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
Sediment is visible through the clear cover indicating when the filter needs cleaning
Ball valve allows for quick sediment removal from bottom of cover
Centrifuge type sediment separation
No filter cartridges to replace
No down time required flushing out sediment
Small size takes little space
Screen mesh sizes can be easily changed if required

Vu-Flow Chemical Resistant Sand Separator T Style Filter – 2″ Uses:

Laboratory
Irrigation
Sand Sensitive Valves
Drip Irrigation
Faucet Aerators
Poultry Growers
Fogger nozzles
Pretreatment for RO

Specifications

Product Details
Body Material	PVC
Inlet Connection	2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Outlet Connection	2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Port Size	2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Product Weight & Dimensions
Product Weight (lbs)	2.98

Product Details
Body Material	PVC
Inlet Connection	2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Outlet Connection	2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Port Size	2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Weight (lbs)	2.8

Product Details
Body Material	PVC
Inlet Connection	2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Outlet Connection	2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Port Size	2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	8 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.95

Product Details
Body Material	PVC
Inlet Connection	2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Outlet Connection	2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Port Size	2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2.7

Product Details
Body Material	PVC
Inlet Connection	2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Outlet Connection	2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Port Size	2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Product Weight & Dimensions
Product Weight (lbs)	2.98

Product Details
Body Material	PVC
Inlet Connection	2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Outlet Connection	2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Port Size	2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	8 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	3.1

Product Details
Body Material	PVC
Inlet Connection	2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Outlet Connection	2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm 711 µm 381 µm
Port Size	2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Weight (lbs)	2.7

Product Information

SKUNT-2-SO-30-HPP
CategoryWater Filter Cartridges

Vu-Flow Chemical Resistant Sand Separator Filter T Style 2″

Specifications

Product Information

Related products

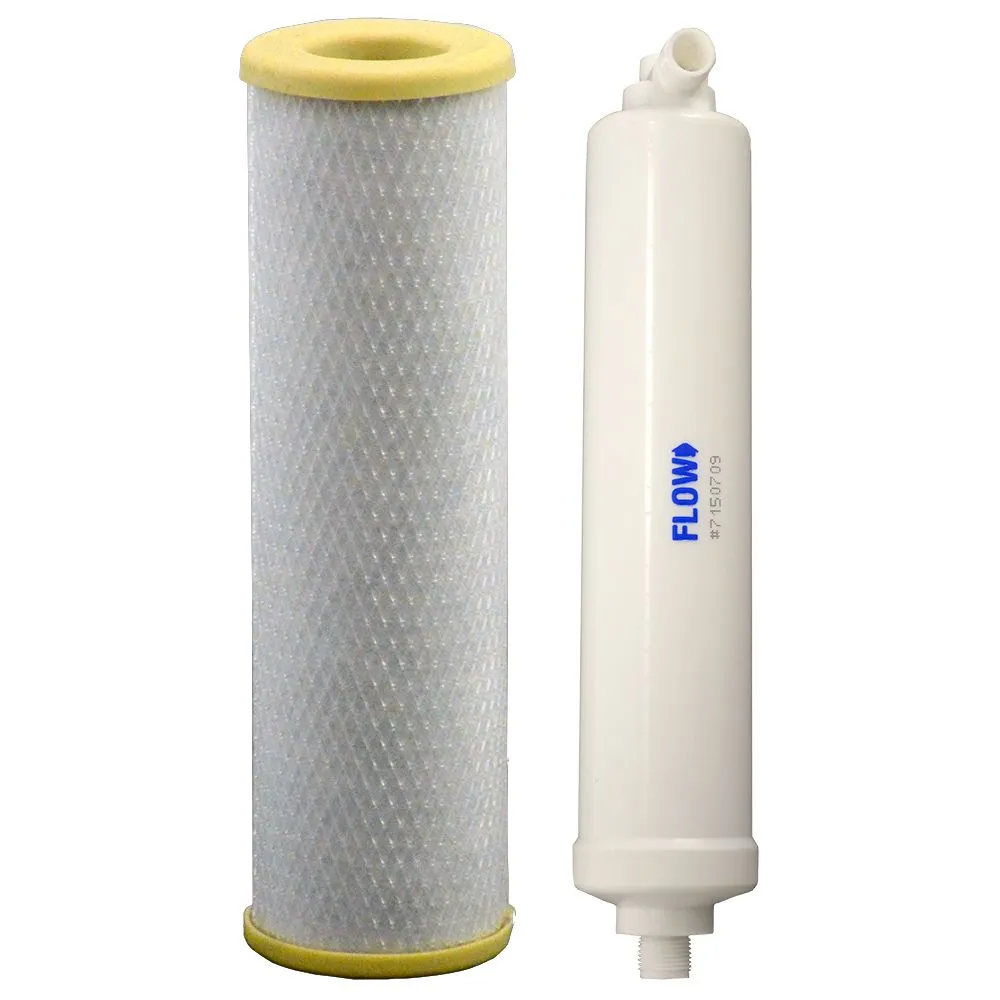

GE FX18P Replacement Prefilter and Postfilter Kit for PNRV18

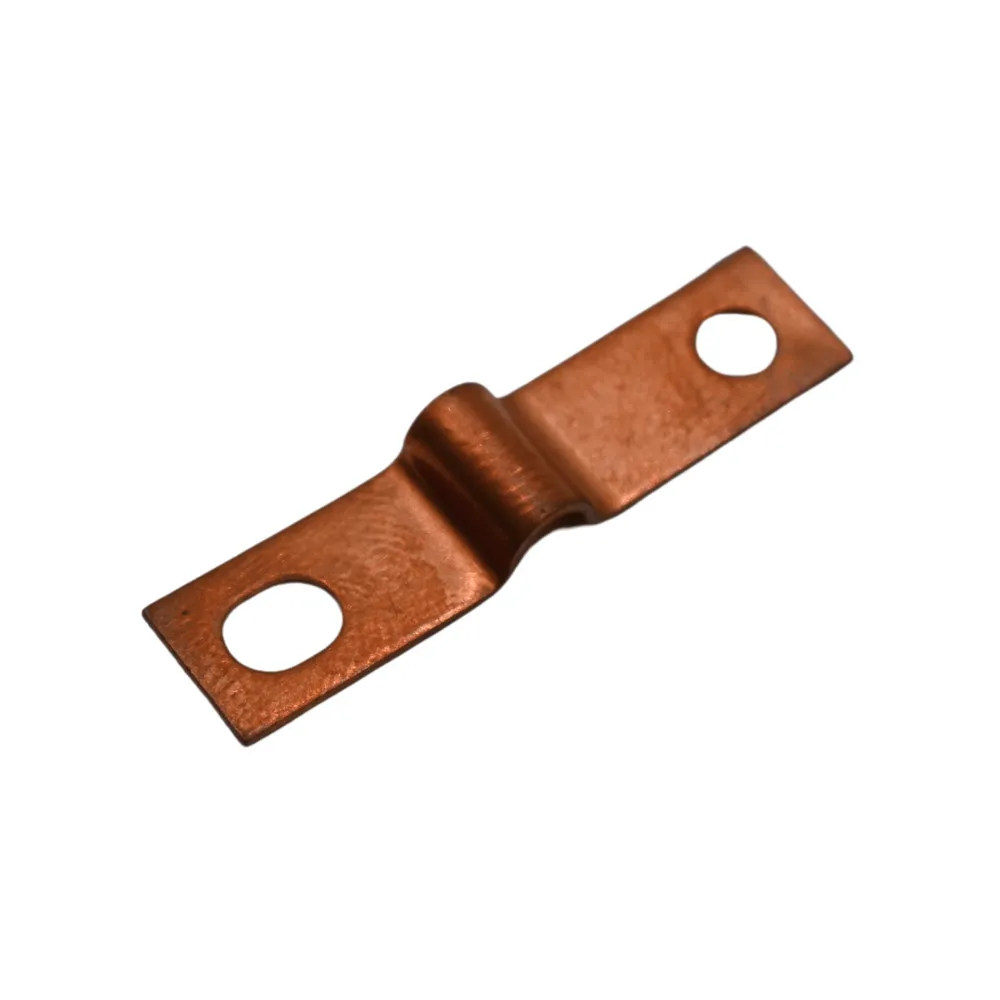

X802150 – Copper Jumper Strap
