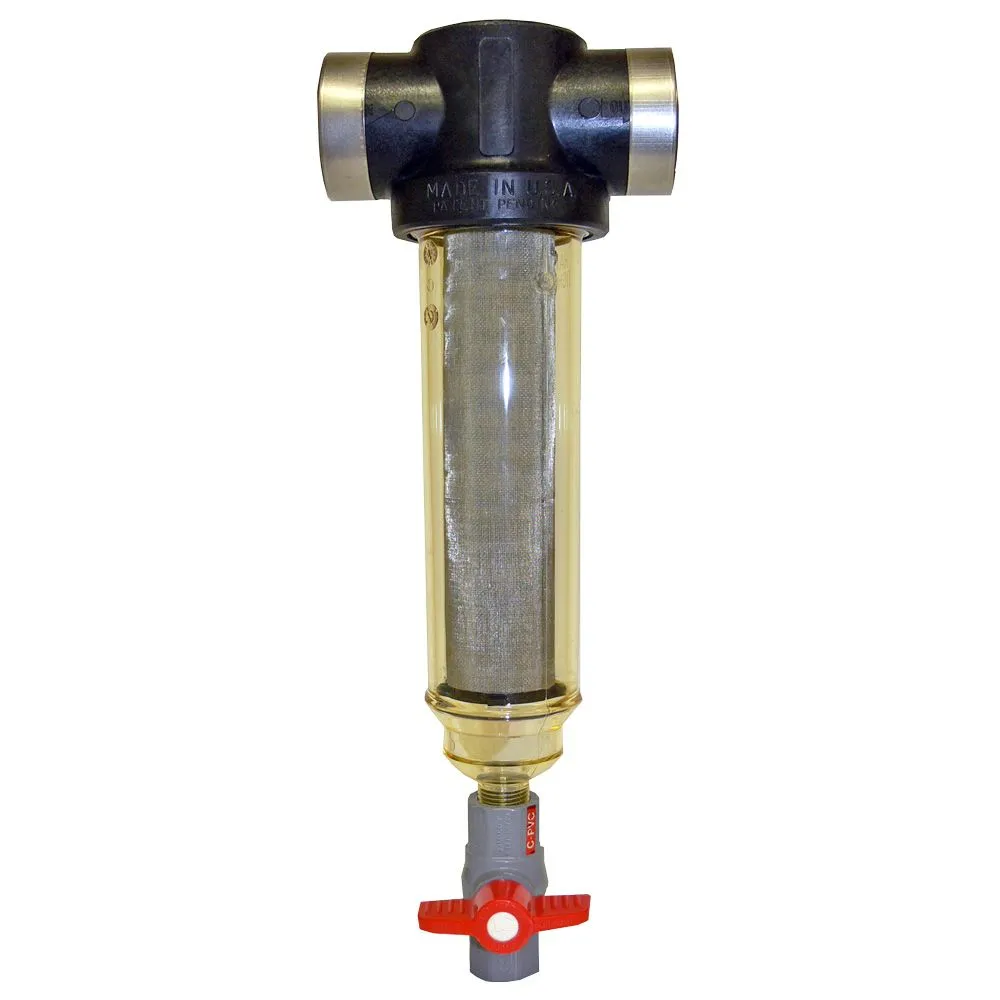

Vu-Flow Hot Water Sediment Filter System – 1-1/2″

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: 1-1/2-30-HT-P

CATEGORY: Water Filter Systems

Description

The Vu-Flow Hot Water Sediment Filter System can operate with water up to 200ºF because of the glass filled polypropylene head that comes with female threads with a stainless steel reinforcing ring over the inlet/outlet. The filter screens are also a durable stainless steel, as well as a chemically resistant and heat resistant filter cover
The Vu-Flow Hot Water filter systems utilize centrifugal separation technology to filter particulates from the water, which is clearly visible through the clear filter cover. The stainless steels screens can also be easily cleaned and reused over and over again.
Application:
Instead of catching all of the scale and scale flakes from your water heater with a Vu-Flow Hot Water Sediment filter, consider the HydroBlend SC-605 Scale Control System that prevents scale build up in your pipes and water heaters. Overtime HydroBlend also helps soften and remove existing mineral scale deposits.
Features:

Capturing scale flakes from water heaters
Hydronic heating systems
Industrial heat exchangers
Cooling tower make up and evaporator water
Domestic or commercial hot water heaters
Industrial (machine coolant and cutting fluids)
Spas/jacuzzis

Note: Requires 2″ O-ring kit (2OR)

Specifications

Product Details
Housing Material	Chemical/Heat Resistant High Impact Polymer Resin
Inlet Connection	1-1/2″ FPT
Max Pressure (Psi)	150
Max Temp (°F)	200
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 74 µm
Outlet Connection	1-1/2″ FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	1-1/2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Weight (lbs)	3.1

Product Details
Housing Material	Chemical/Heat Resistant High Impact Polymer Resin
Inlet Connection	1-1/2″ FPT
Max Pressure (Psi)	150
Max Temp (°F)	200
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 74 µm
Outlet Connection	1-1/2″ FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	1-1/2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2.9

Product Details
Housing Material	Chemical/Heat Resistant High Impact Polymer Resin
Inlet Connection	1-1/2″ FPT
Max Pressure (Psi)	150
Max Temp (°F)	200
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 74 µm
Outlet Connection	1-1/2″ FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	1-1/2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2.85

Product Details
Housing Material	Chemical/Heat Resistant High Impact Polymer Resin
Inlet Connection	1-1/2″ FPT
Max Pressure (Psi)	150
Max Temp (°F)	200
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 74 µm
Outlet Connection	1-1/2″ FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	1-1/2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	8 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	3

Product Details
Housing Material	Chemical/Heat Resistant High Impact Polymer Resin
Inlet Connection	1-1/2″ FPT
Max Pressure (Psi)	150
Max Temp (°F)	200
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 74 µm
Outlet Connection	1-1/2″ FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	18-100 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	1-1/2″
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Weight (lbs)	2.8

Product Information

SKU1-1/2-30-HT-P
CategoryWater Filter Systems

Vu-Flow Hot Water Sediment Filter System – 1-1/2″

Specifications

Product Information

Related products

AquaCera CeraGrav LP5 Gravity Water Filter System

Magna High Flow Filter System | Parallel Flow

HydroBlend SC-605-HW 5″ Scale Control Filter System

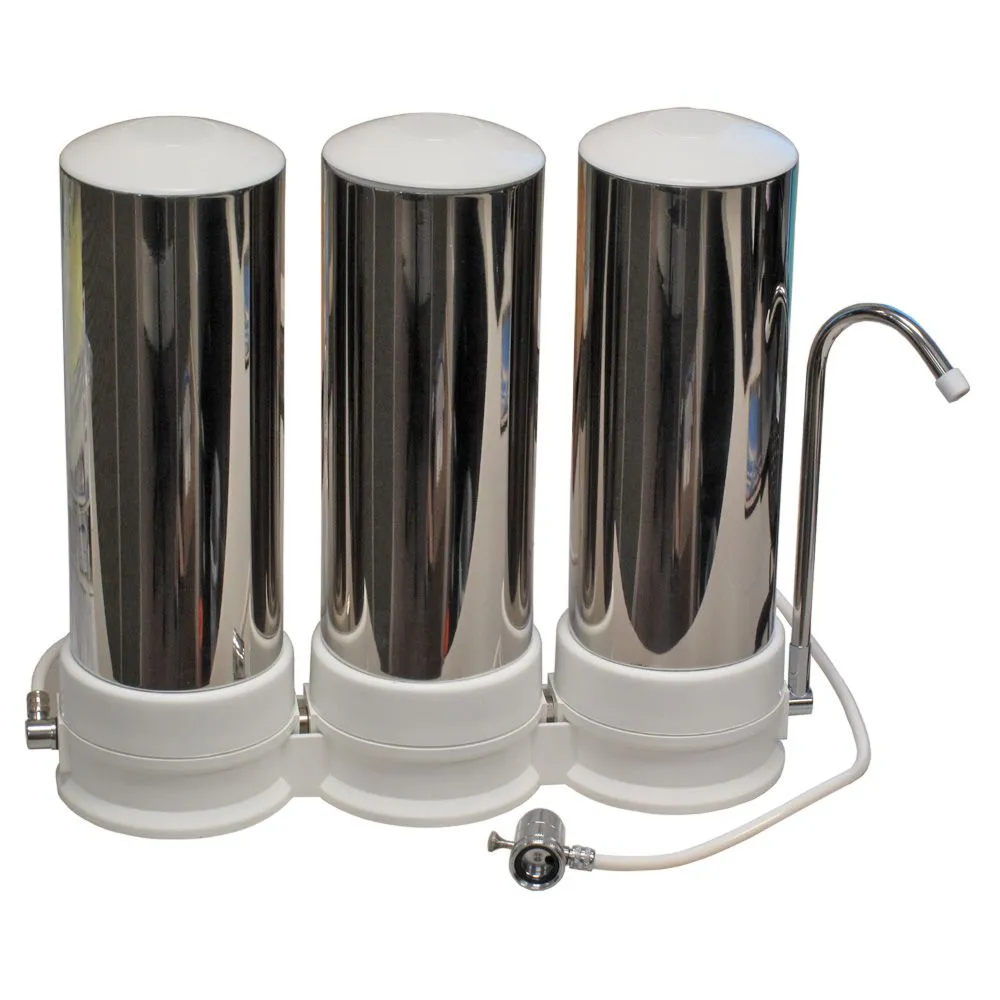

QMP604 Stainless Steel Triple Countertop Water Filter System
