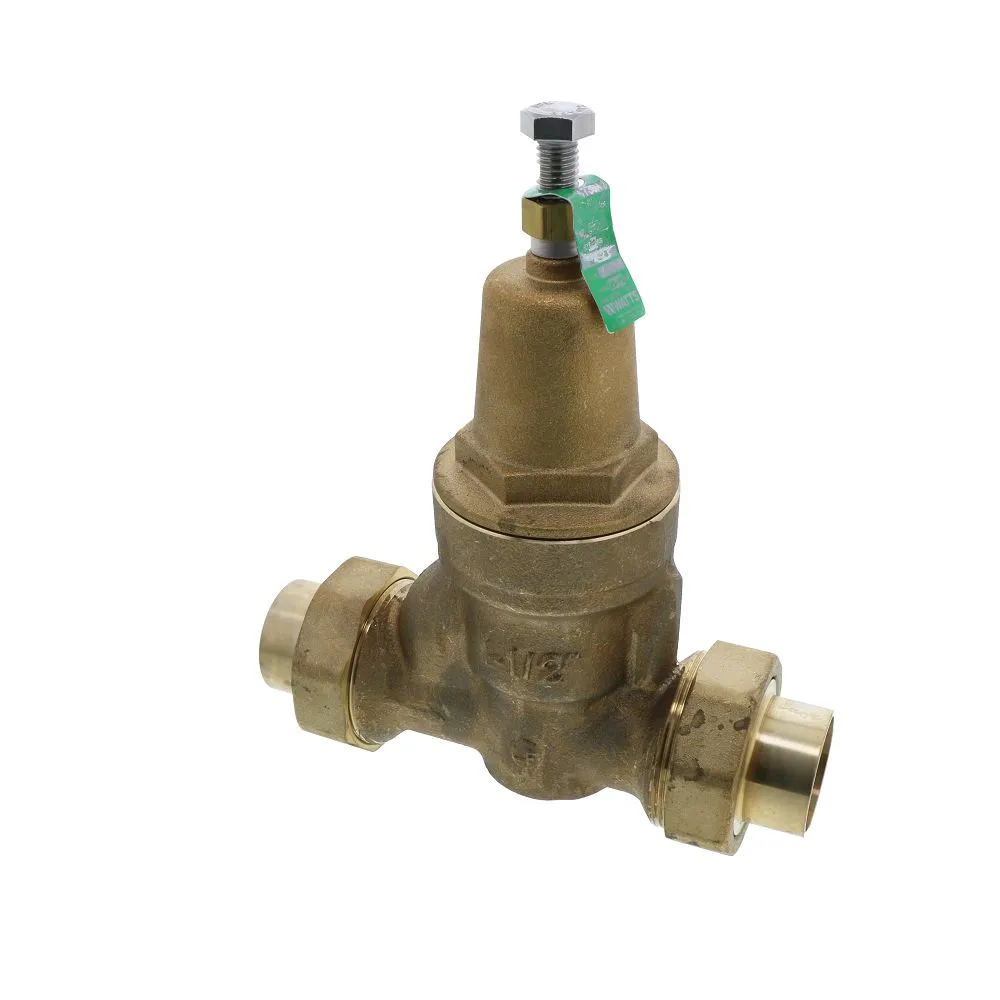

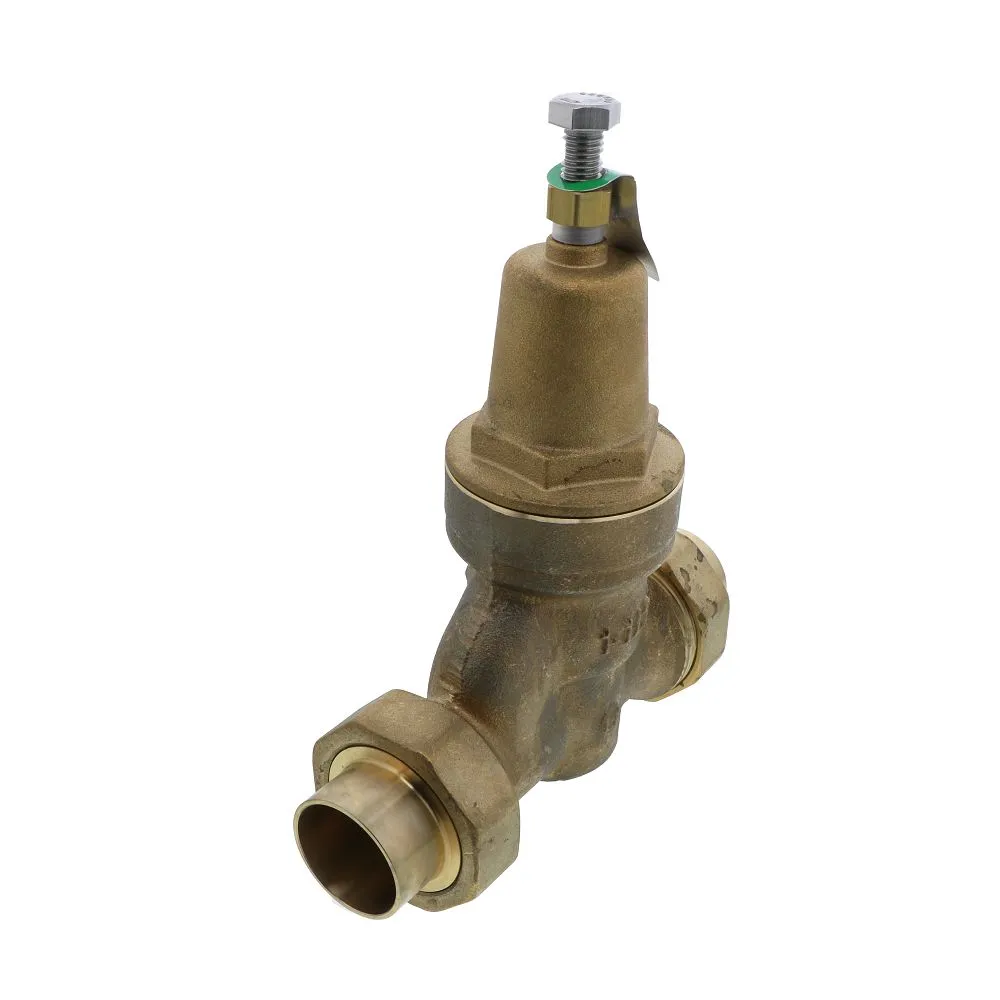

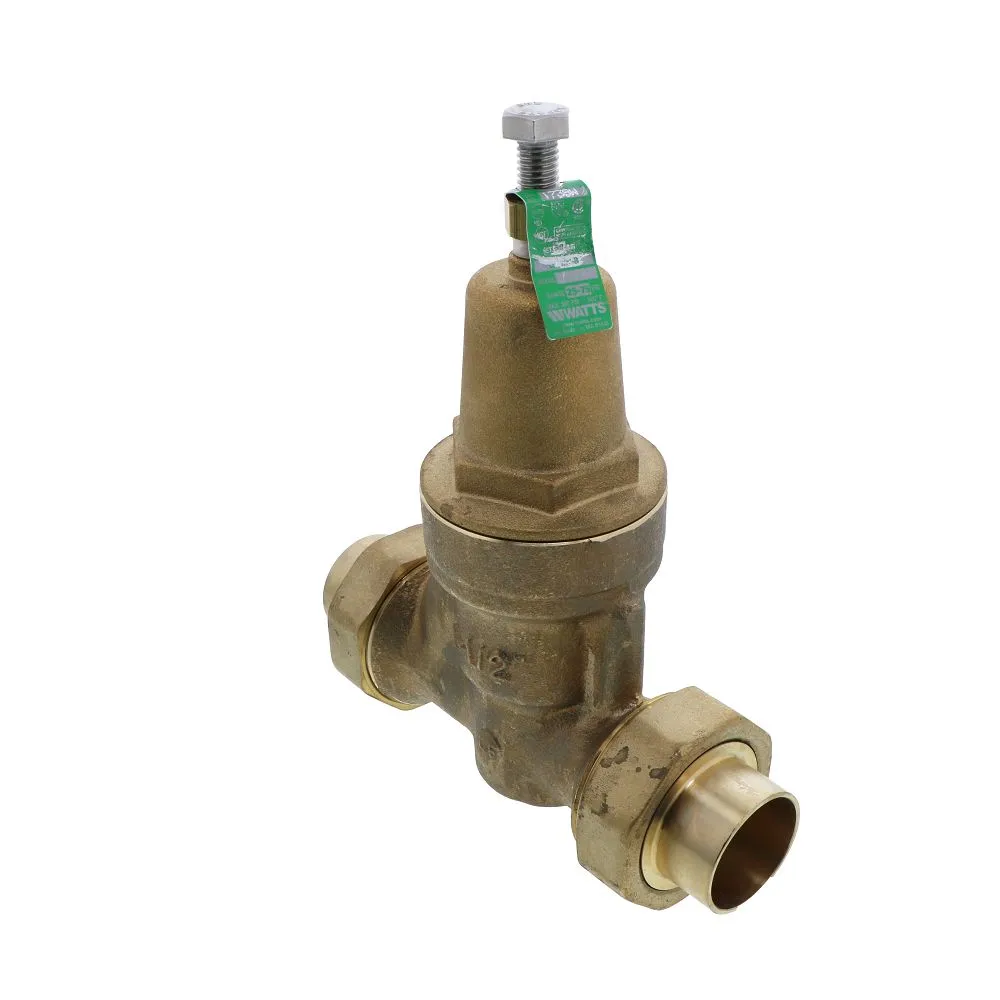

Watts PRV-15-LFN55BDU-S Pressure Regulator 1-1/2″

• Commercial and residential applications
• Double union-solder union inlet and outlet
• Bronze cage
• Reduces incoming water pressure for protection of plumbing system components and to reduce water consumption
• Integral stainless steel strainer
• Thermoplastic seat
• Lead-free brass body construction
• Serviceable in line
• Bypass feature controls thermal expansion pressure
• Sealed spring cage on all models for accessible outdoor or pit installations

Specifications:

• Size: 1-1/2″
• Double Union – Solder Union Inlet and Outlet
• Max Working Pressure: 300 psi (20.7 bar)
• Adjustable Reduced Pressure Range: 25 to 75 psi (172 – 517 kPa)
• Standard Reduced Pressure Setting: 50 psi (345 kPa)
• Temperature Range: 33°F – 180°F (0.5°C – 82°C)
• Height: 10.5″ max., Width: 8.375″
• Standards: ASSE 1003, ANSI A112.26.2 & CSA Standard B356
