WH-S200-C Whole House Standard Duty Valve-in-Head Water Filter System with P5 cartridge

This Product Filters: Silt | Sediment | Scale | Sand | Rust | Dirt

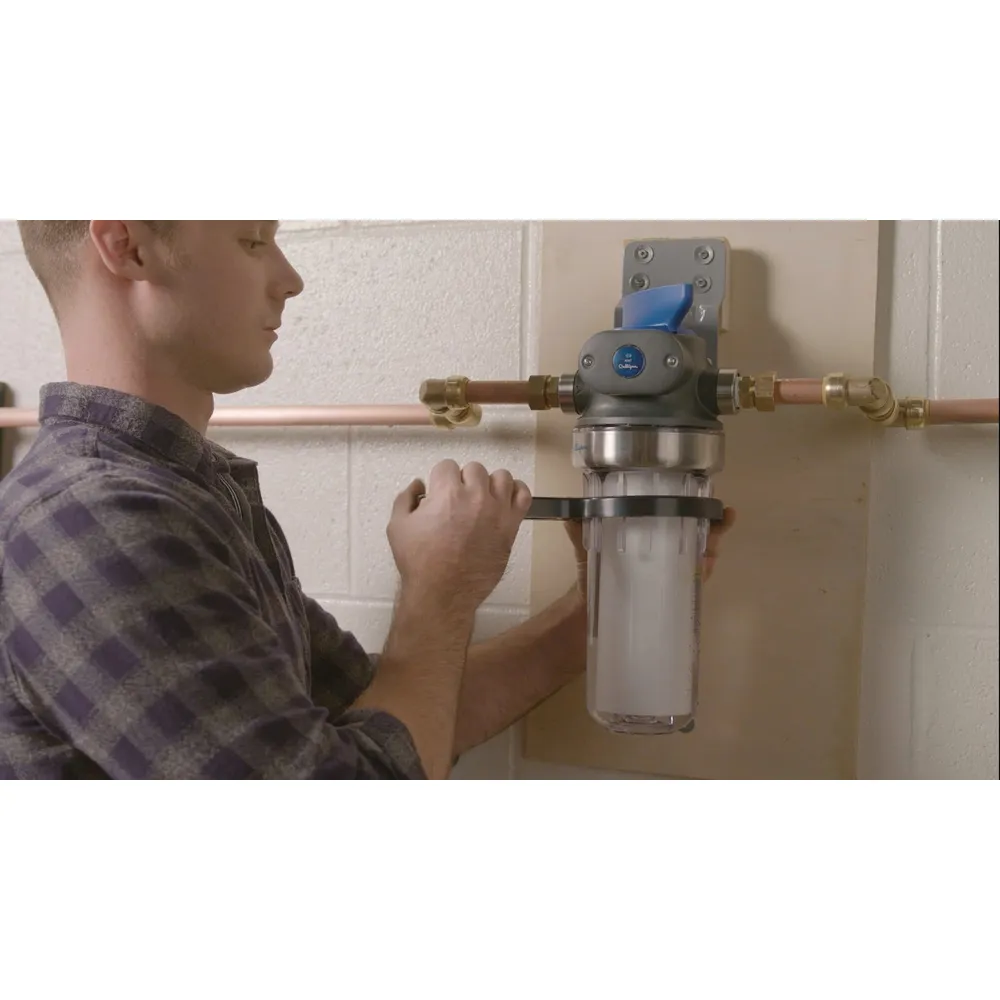

Preserve and protect household plumbing and water-using appliances with the Culligan® WH-S200-C Whole House Standard Duty Valve-in-Head Water Filter System with P5 cartridge. Installs on the 3/4-inch main water line at the point of entry. This filter housing features stainless steel reinforced inlet/outlet and cap for added durability and is designed with a convenient built-in bypass valve to stop the water flow at cartridge change time. For ease of cartridge change, a housing wrench is included.

Product Features

• Stainless steel reinforced 3/4″ inlet-outlet & sump rim, bypass valve for easy cartridge change, and filter life monitor
• Filter extends life of washing machines, water heaters, water softeners, fixtures, faucets, and other water-using household appliances

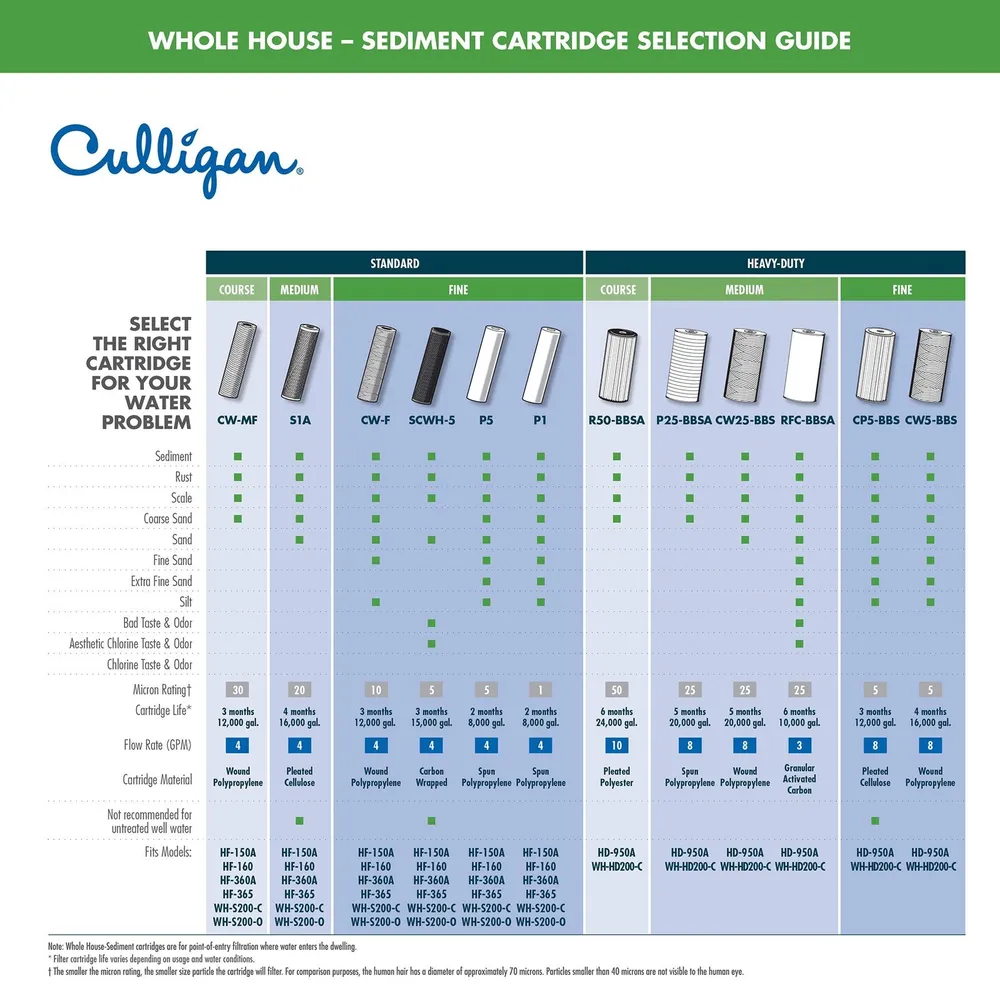

• Use Culligan® sediment whole house cartridges: SCWH-5, CW-MF, S1A, CW-F, P5 and P1
• WQA/IAMPO Tested and Certified for structual integrity. 2-year limited warranty

Product Specifications

Additional Parts Available: Replacement parts sold separately: Culligan® OR-150 o-ring, WR-S housing wrench and BR-C mounting bracket

Package includes: Housing with P5 filter cartridge, OR-150 o-ring, WR-S housing wrench, BR-C mounting bracket and installation instructions

Filter Life: 8,000 gallons or 2 months with P5 cartridge

Nominal Micron Rating: 5 micron

Flow Rate (GPM):4 GPM

Temperature Range Fahrenheit:40 – 100°F

Operating Pressure Range PSI: 30–125 psi

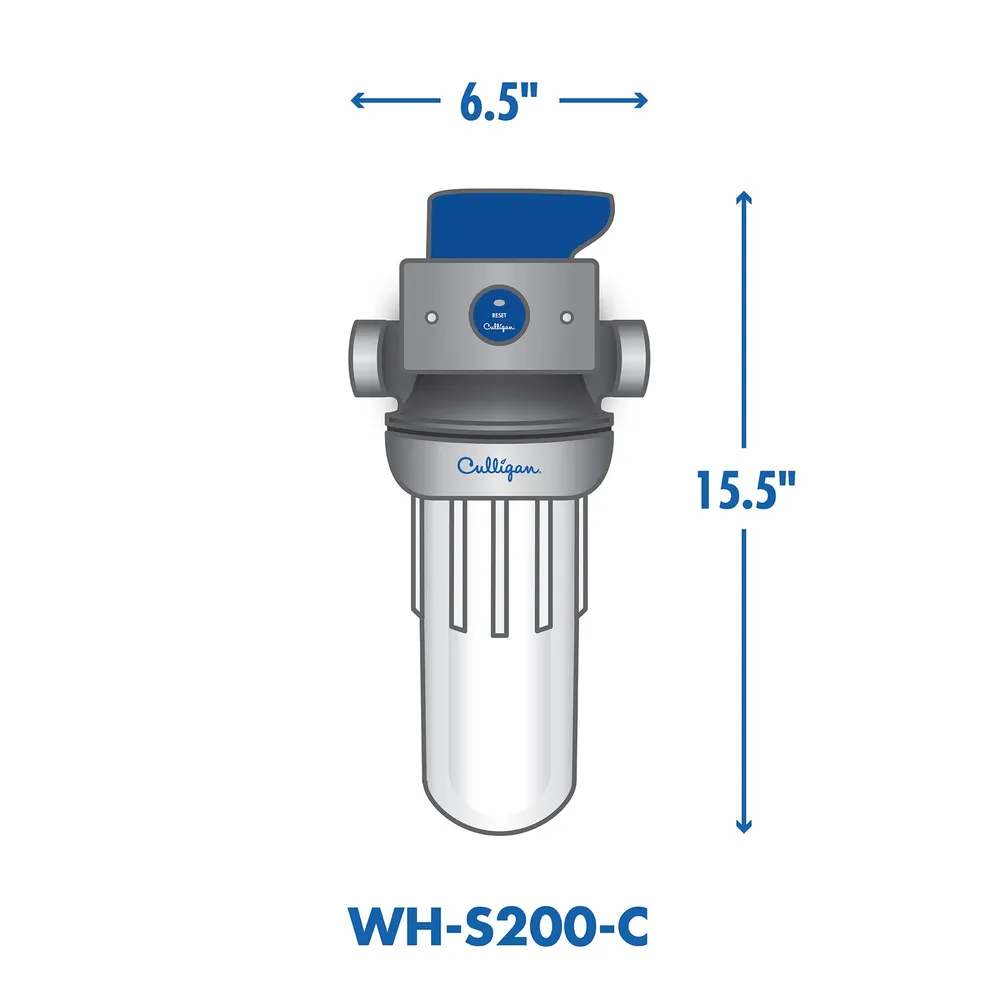

Product Dimensions:15.5 X 6.5 X 5.4

Use With: CW-F,CW-MF, P5, P1, S1A, SCWH-5
