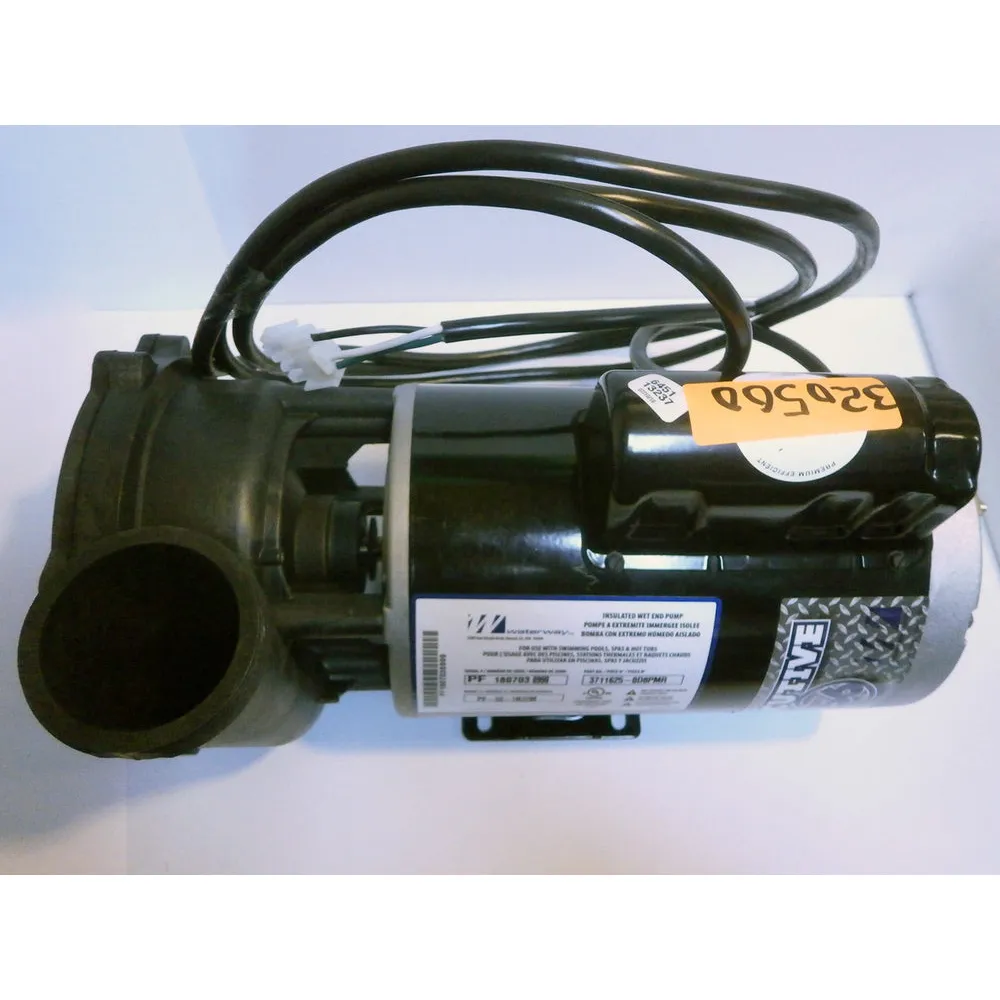

X320500 – Spa Pump – 12A 1spd 56 Frame Executive Waterway Pump

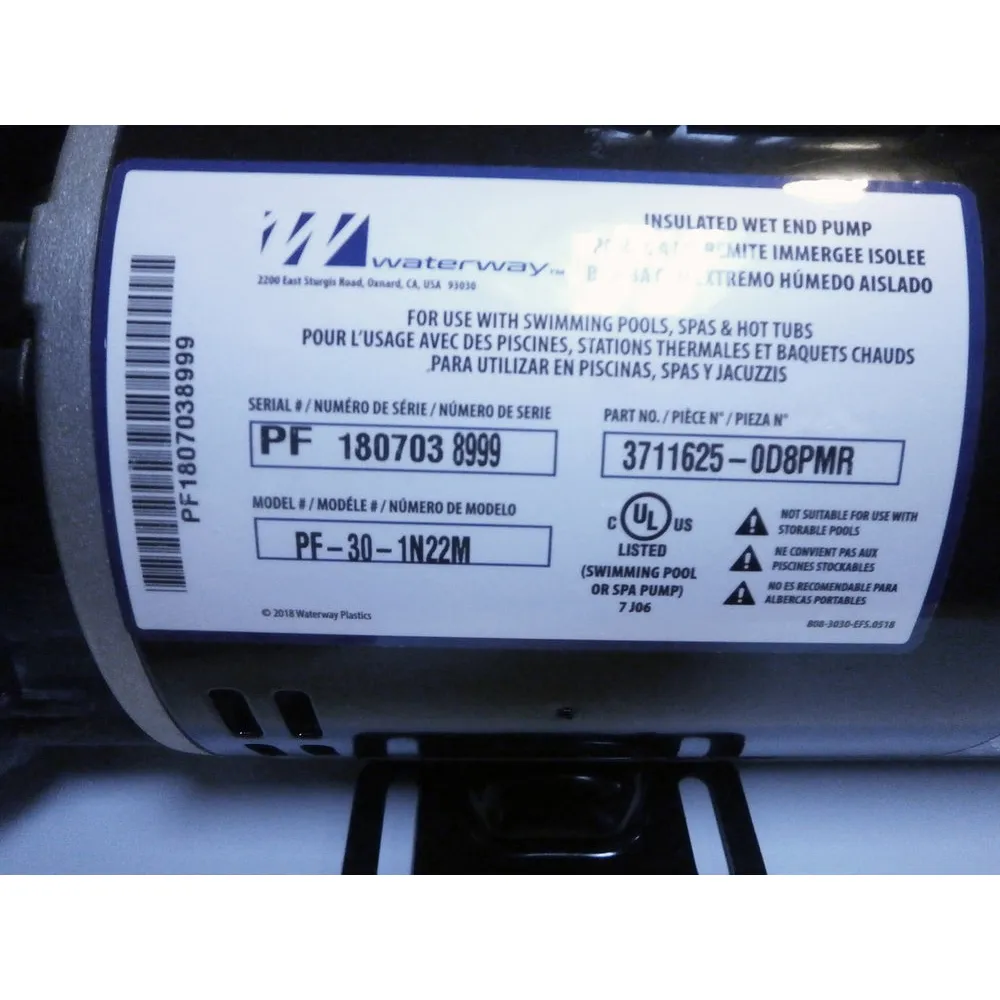

Serial# (varies) Prefix: PF1nnnnn
Part No.: 3711625-0D8PMR
Model#: PF-30-1N22M
Also, “Executive 56” is clearly visible on a Black Label on the Motor
Single speed pumps have a 4 prong Molex adapter, with only three active leads
Dimensions:
Front Intake:
Outside Diameter: 3.00 inches (7.62 cm)
Inside Diameter: 2.25 inches (5.715 cm)
Side Discharge:
Outside Diameter: 3.00 inches (7.62 cm)
Inside Diameter: 2.375 inches (6.0325 cm)
Other items associated with this part: X320505 – Spa Pump – 12 Amp 2spd 230V 56 Frame Executive Waterway Pump
