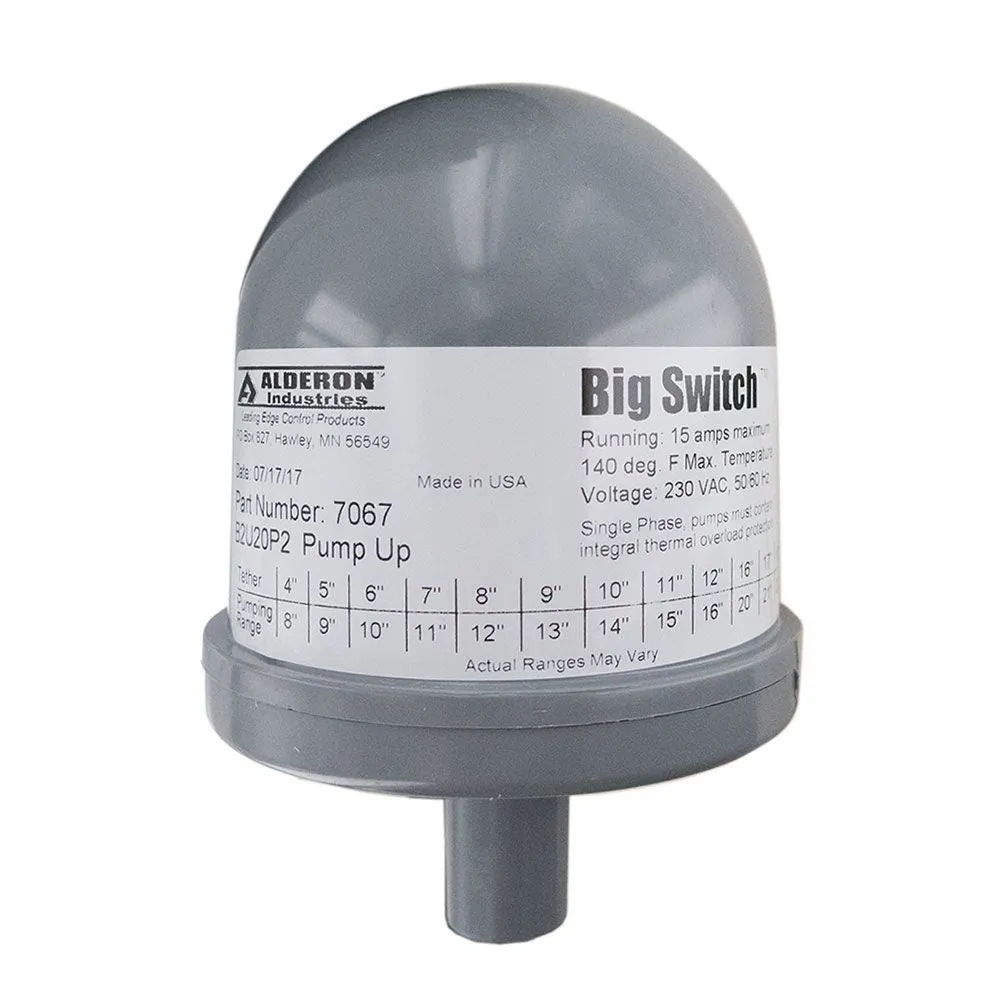

Alderon 200919 Pump Up Series Float Switches

Big Switch Float Switches are rated at 15 amps, which allows the switches to be used on both small and large horsepower pumps.Normally Closed (Pump Up) Switch turns on (closes) when the float is 45 degrees below horizontal, turning on the pump, and turns off (opens) when the float drops 45 degrees above horizontal, turning off the pump.
Features:

• Amperage: 15 amps @ 220V
• Operating Temperature – 0 to 140 °F
• Float Housing: 3.25″ x 4.50”
• Housing: High Impact PVC
• Switching Differential: 90 degrees Pump Range 8-22 inches
• Cable Length: 20 ft
• Certifications: UL Listed
• Warranty: 3 Years
• Patented Mechanical Design
• PVC Float Housing
• Heavy Duty Cable
• Omni-Directional
