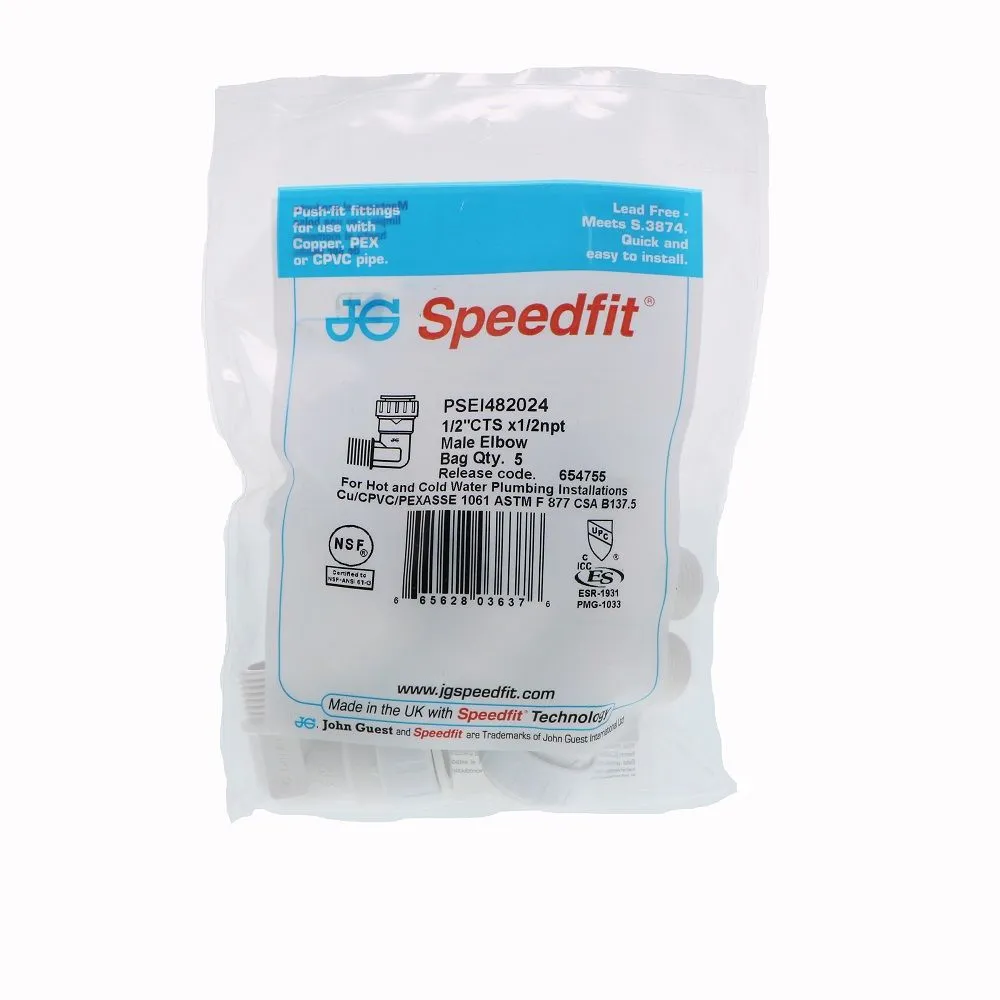

John Guest Male Fixed Elbow – 1/2 CTS x 1/2 NPT – White

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: PSEI482024

CATEGORY: Fittings & Connectors

Description

The John Guest push-fit male elbow makes joining PE-RT, PEX, copper, and CPVC to female NPT threads easy. Incorporates Twist-to-Lock feature for added security. Fast and easy to use – no tools, soldering, glue or clamps. Approved for behind-the-wall applications and can be used for permanent installations. Ideal for work in tight spaces. Can be disconnected without damage to tubing.

Features:

Twist-to-Lock Technology
For use with PE-RT, PEX, copper, and CPVC pipe, in any combination
Only to be used with plastic mating threads
No tools, soldering, glue or clamps
Can be installed on wet lines.
Approved for behind-the-wall applications with no access panel
Can be disconnected (if needed) without tools

Working Pressure & Temperature:

Max 160 psi at 73° F
Max 100 psi at 180° F
Max 80 psi at 200° F

Specifications

Product Details
Application	CPVC Copper Tubing Material PEX
Body Material	Polypropylene
Inlet Connection	1/2″ MPT
Max Pressure (Psi)	160
Max Temp (°F)	200
Min Pressure (Psi)	0
Min Temp (°F)	33
Mounting Options	Thread
Outlet Connection	1/2″ MPT
Push-In Size	5/8″ OD
Seal Material	EPDM
Series	PEI
Shape	90
Size	1/2″
Color / Finish	White
Connection Type	Male (MPT)
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61

Product Details
Application	CPVC Copper Tubing Material PEX
Body Material	Polypropylene
Inlet Connection	1/2″ MPT
Max Pressure (Psi)	160
Max Temp (°F)	200
Min Pressure (Psi)	0
Min Temp (°F)	33
Mounting Options	Thread
Outlet Connection	1/2″ MPT
Push-In Size	5/8″ OD
Seal Material	EPDM
Series	PEI
Shape	90
Size	1/2″
Color / Finish	White
Connection Type	Male (MPT)
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61

Product Details
Application	CPVC Copper Tubing Material PEX
Body Material	Polypropylene
Inlet Connection	1/2″ MPT
Max Pressure (Psi)	160
Max Temp (°F)	200
Min Pressure (Psi)	0
Min Temp (°F)	33
Mounting Options	Thread
Outlet Connection	1/2″ MPT
Push-In Size	5/8″ OD
Seal Material	EPDM
Series	PEI
Shape	90
Size	1/2″
Color / Finish	White
Connection Type	Male (MPT)
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61

Product Information

SKUPSEI482024
CategoryFittings & Connectors

John Guest Male Fixed Elbow – 1/2 CTS x 1/2 NPT – White
