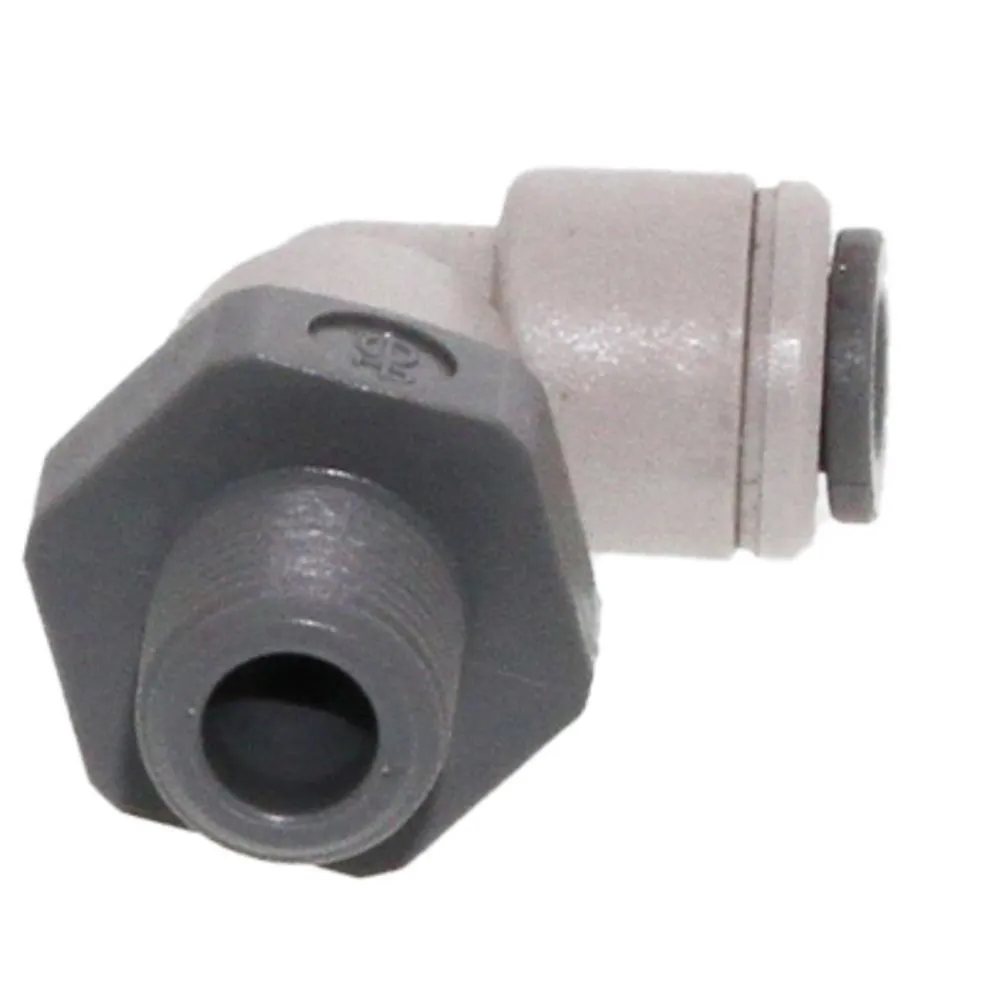

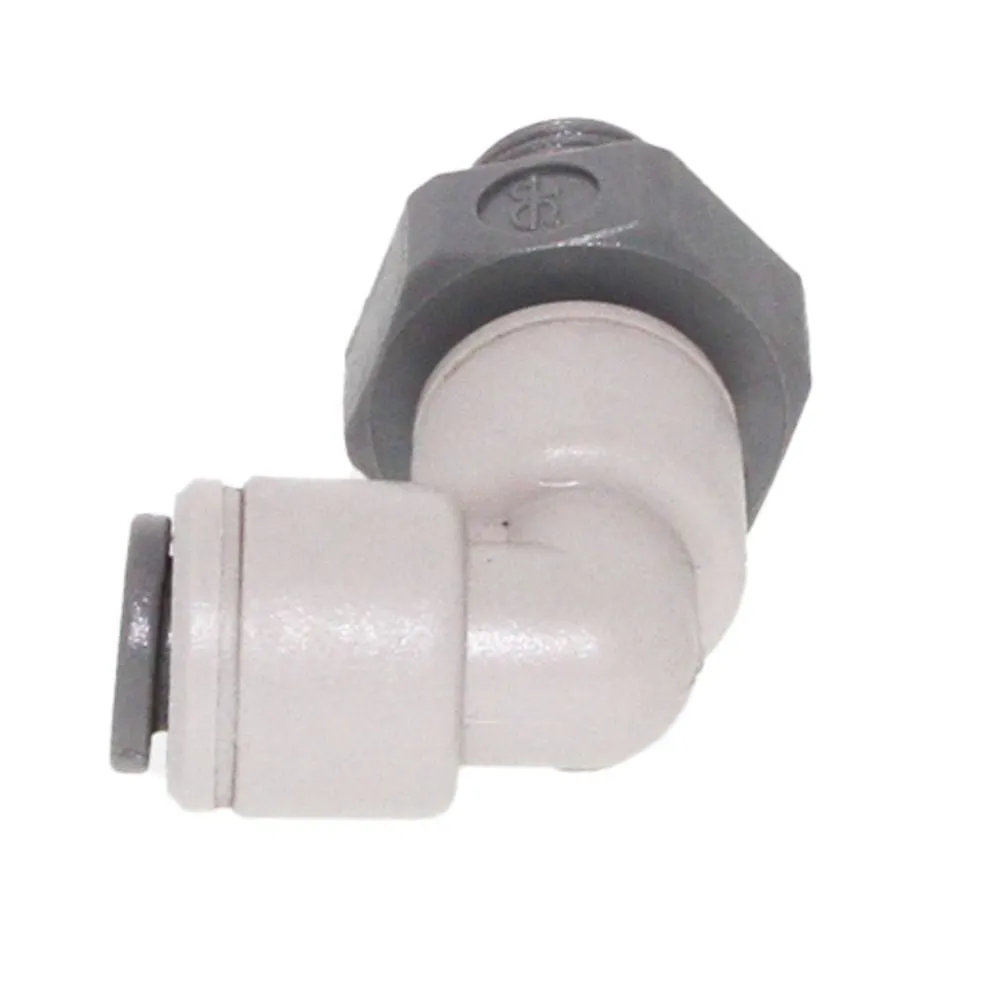

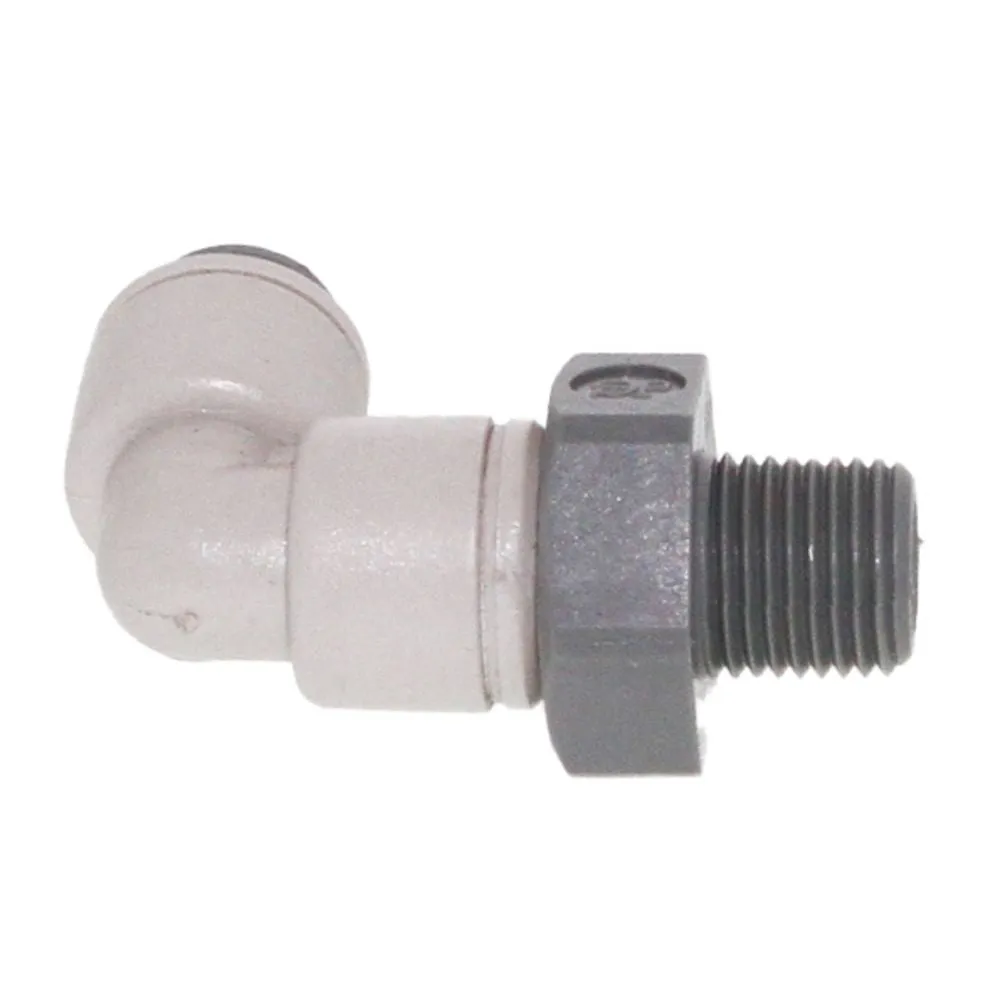

The John Guest swivel elbow makes connecting OD tubing sizes to female BSPT threads quick and easy. Manufactured in acetal with food grade nitrile O-ring, these fittings are suitable for foodstuff and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
Working pressure and temperature:
| Product Details | |
|---|---|
|
Application |
Water Air Food Beverage |
|
Body Material |
Acetal Copolymer |
|
Inlet Connection |
1/8″ BSP |
|
Max Pressure (Psi) |
230 |
|
Max Temp (°F) |
150 |
|
Min Pressure (Psi) |
Vacuum |
|
Min Temp (°F) |
-4 |
|
Mounting Options |
Thread |
|
Outlet Connection |
1/8″ BSP |
|
Push-In Size |
5/16″ OD |
|
Seal Material |
Buna-N |
|
Series |
PI |
|
Shape |
90 |
|
Size |
1/8″ |
|
Color / Finish |
Gray |
|
Connection Type |
BSP |
|
Origin |
UK |
|
Sub-Type |
Male Swivel Elbow |
|
Type |
Elbow |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 61, NSF/ANSI 51 |
