Rusco Spin Down Filter PE Screen T Style 1″

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: 1-24-F

CATEGORY: Water Filter Cartridges

Description

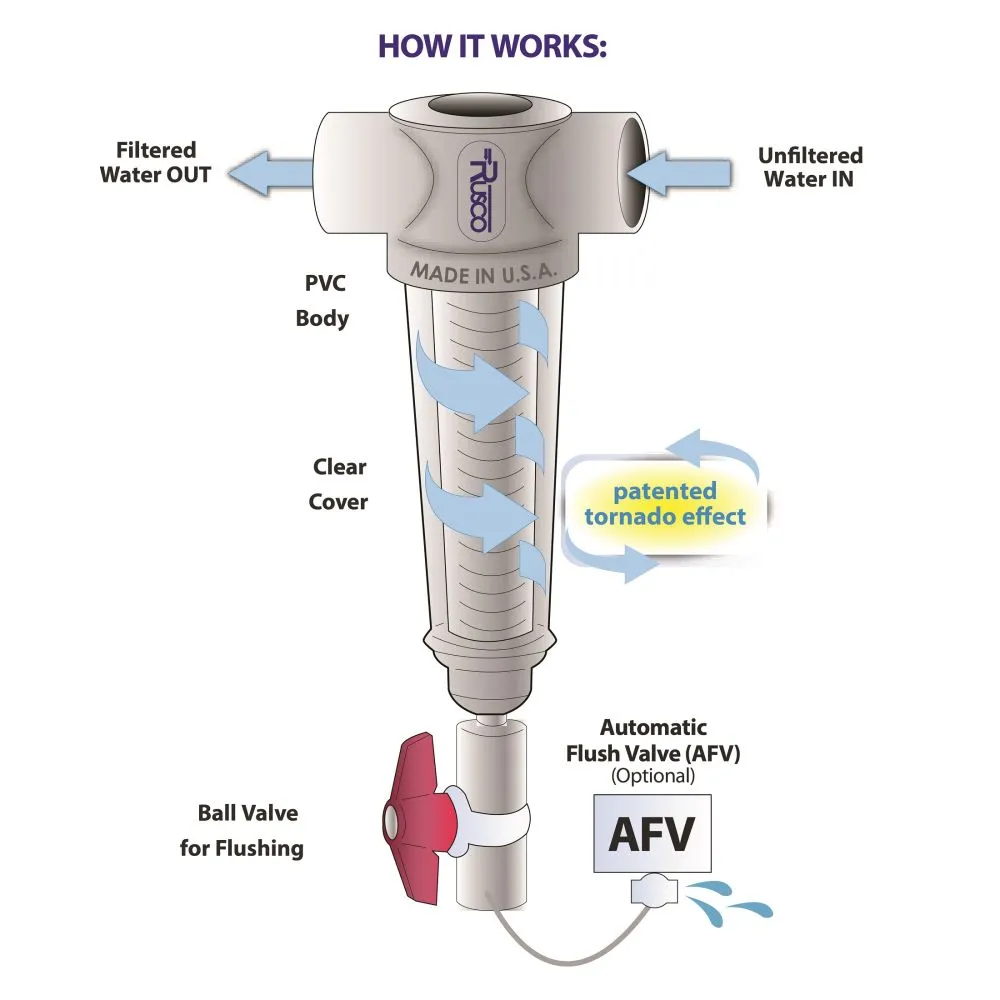

The Rusco 1″ Spin-Down Sediment Filter System with polyester filter screen makes solid particle removal simple and economical. The benefit of the 1″ spin-down filter system is its ability to be cleaned and reused. The 1″ spin-down sediment filter by Rusco has a clear cover that can be easily removed for total cleaning. There is an unique tornado (spin-down action) effect created by the patented process.
Features:

Unique element design traps sediment in lower reservoir of clear cover.
Clear bowl easily removed for total cleaning (no tools required – using tools voids warranty)
Sediment is visible through the clear cover indicating when the filter needs cleaning
Ball valve allows for quick sediment removal from bottom of cover
Centrifuge spin-down-type sediment separation
No down time!!

Rusco Spin Down Filter Polyester Screen – 1″ Benefits:

No filter cartridges to replace
No down time required flushing out sediment
No wasteful backwashing required
Small size takes little space
Screen sizes can be easily changed if required

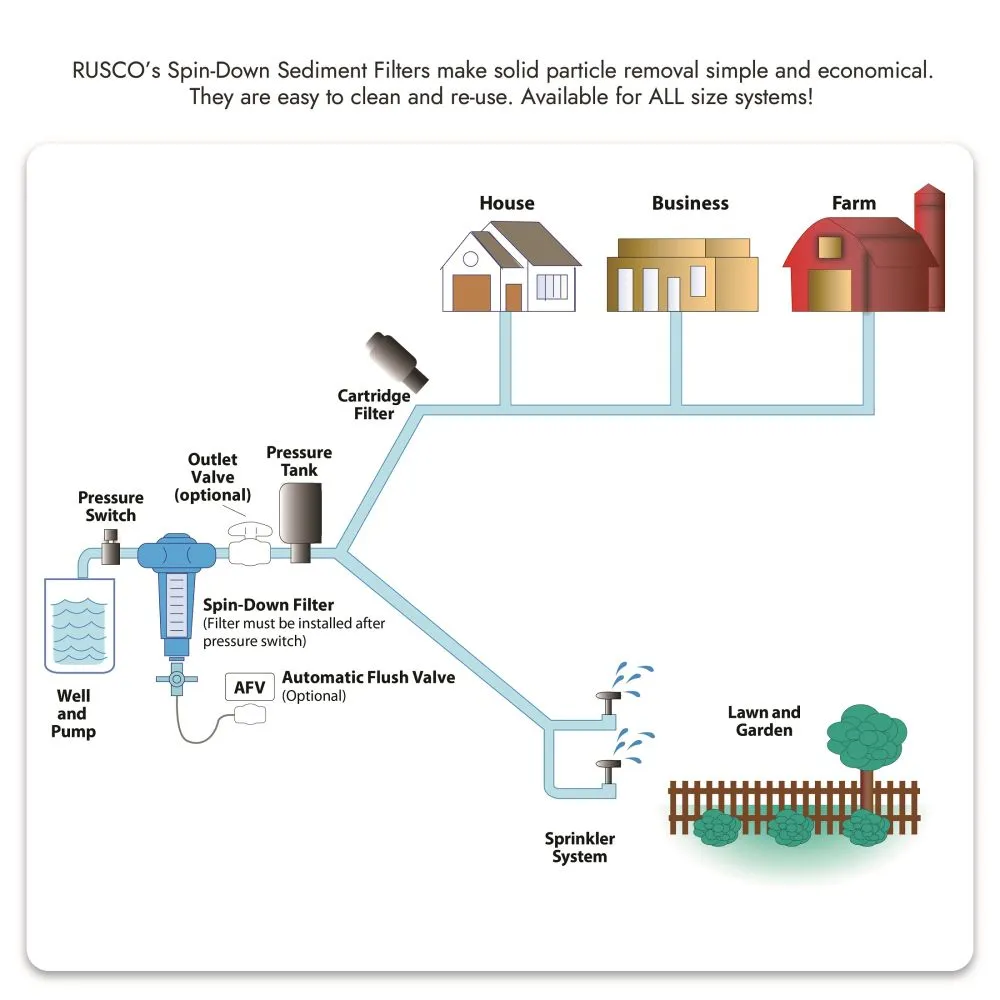

Multiple uses: well water, irrigation, sand-sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010″), fogger nozzles, pre-treatment for ultrafiltration water systems and reverse osmosis

Also known as the following models:

Rusco Spin-Down: 1-24-F, 1-30-F, 1-40-F, 1-60-F, 1-100-F, 1-140-F, 1-250-F, 1-500-F, 1-1000-F
Ace Hardware / Campbell: FT4-60 (4188603), FT4-100 (4188611)
Vu-Flow (VuFlow) Screen Filter: NT100-30P, NT100-60P, NT100-100P, NT100-140P, NT100-250P, NT100-500P, NT100-1000P

Compatible with:

Ace Hardware	FT4-60 (4188603), FT4-100 (4188611),
Campbell®	FT4-60 (4188603), FT4-100 (4188611),
Vu-Flow Sediment Filter Replacement Screens	NT100-30P, NT100-60P, NT100-100P, NT100-140P, NT100-250P, NT100-500P, NT100-1000P

Specifications

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1″
Housing Material	High Impact Polymer Resin
Inlet Connection	1″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1″ Slip
Cartridge Style	Spin-down
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SPIN-DOWN \| POLYESTER
Flow Rate	1-25 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1″

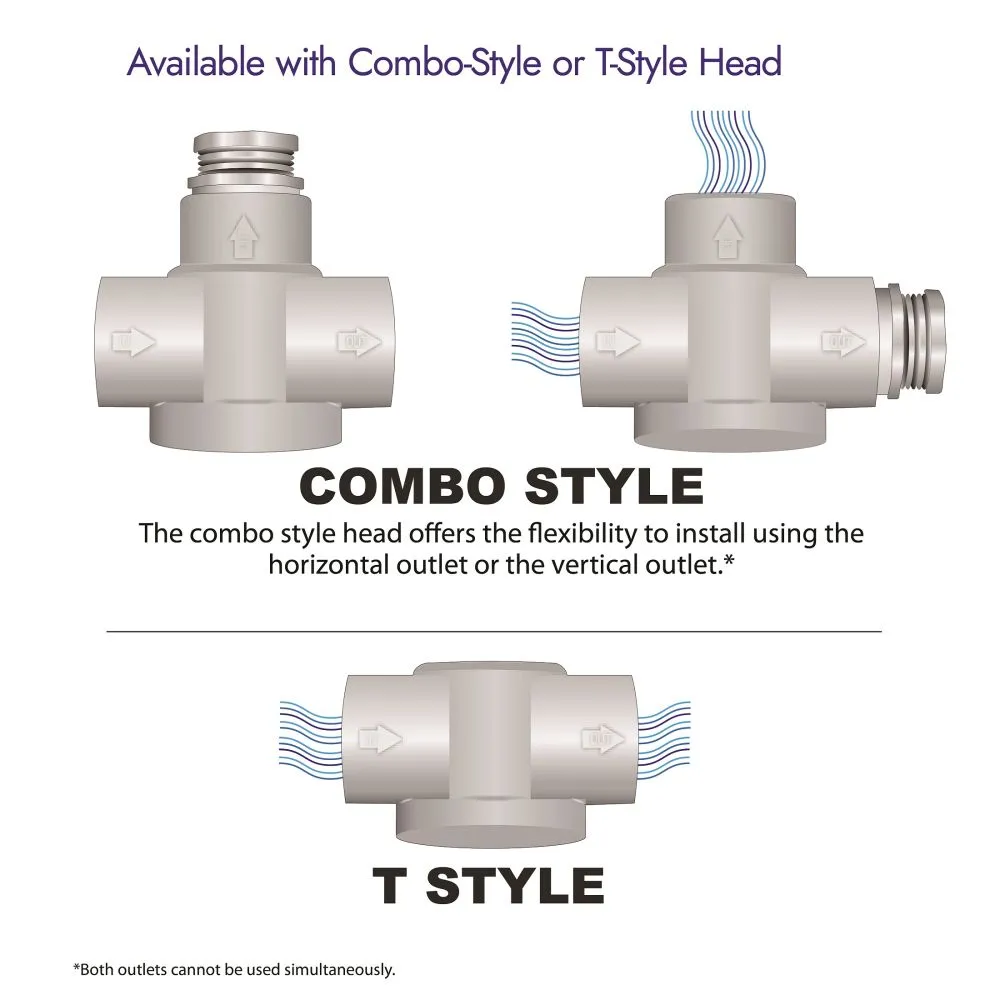

Sub-Type	T-Style System
Type	Standard
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	5″
Product Length	11-3/8″
Product Width	5″
Product Weight (lbs)	1.55

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1″
Housing Material	High Impact Polymer Resin
Inlet Connection	1″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1″ Slip
Cartridge Style	Spin-down
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SPIN-DOWN \| POLYESTER
Flow Rate	1-25 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1″
Sub-Type	T-Style System
Type	Standard
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	5″
Product Length	11-3/8″
Product Width	5″
Product Weight (lbs)	1.45

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1″
Housing Material	High Impact Polymer Resin
Inlet Connection	1″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
